Availability : Usually Ships in 1-3 Business Days

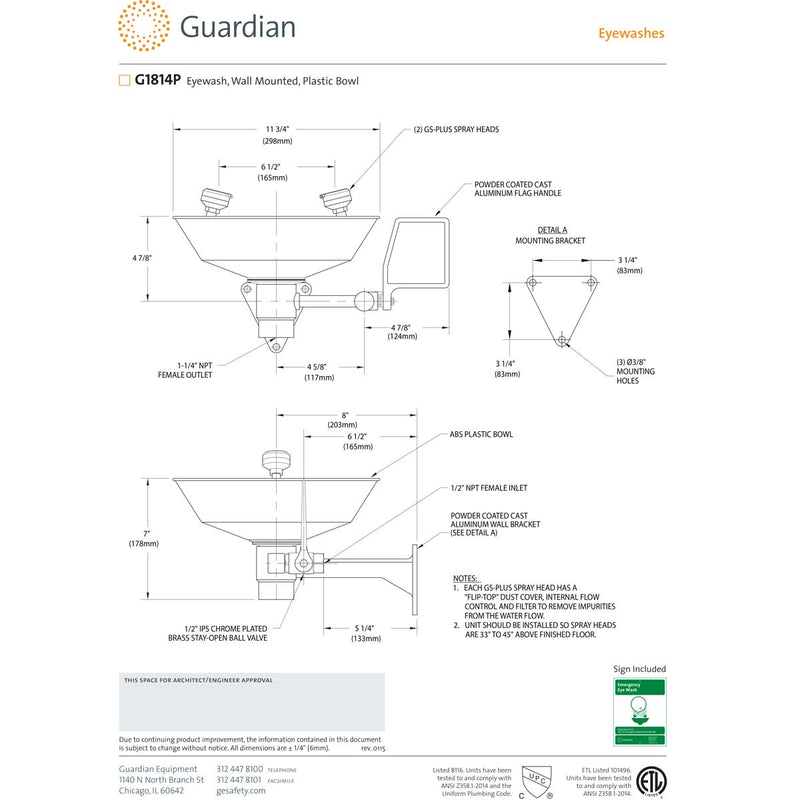

Wall mounted eye wash features 12" ABS plastic bowl with anodized aluminum wall bracket. Never lose dust covers again! Spray head assembly has two Gentle Spray outlet heads with "flip-top" dust covers mounted on chrome plated brass supply arms. Activated by a 1/2" IPS chrome plated brass stay-open ball valve with cast aluminum flag handle. Bowl acts like a sink to drain water away. Unit meets ANSI Z358.1 standard as primary eye wash. Fully factory assembled and water tested. Complete with ANSI compliant identification sign.
APPLICATION:
Eyewash for wall mounting. Two GS-Plus spray-type spray heads deliver a flood of water for rinsing eyes.
SPRAY HEAD ASSEMBLY:
Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE:
1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL:
11 1/2" diameter orange ABS plastic.
MOUNTING:
Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish.
SUPPLY:
1/2" NPT female inlet.
WASTE:
1 1/4" NPT female outlet.
SIGN:
ANSI-compliant identification sign.
QUALITY ASSURANCE:
Unit is completely assembled and water tested prior to shipment.
| Item | Wall-Mount Eyewash |
| Sprayhead | Eyewash |
| Mounting | Wall Mount |
| Eyewash Bowl Material | Plastic |
| Operation | Push Handle |
| Fitting Size | 1/2" NPT Female |
| Head Dia. | 1-1/2" |
| Bowl Dia. | 11-1/2" |
| Width | 15-5/8" |
| Depth | 13-3/4" |
| Height | 9" |
| ANSI Compliant | Yes |
| Number of Heads | 2 |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
