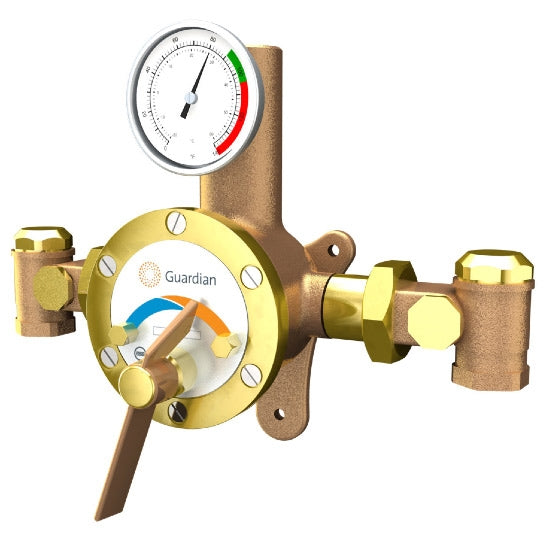

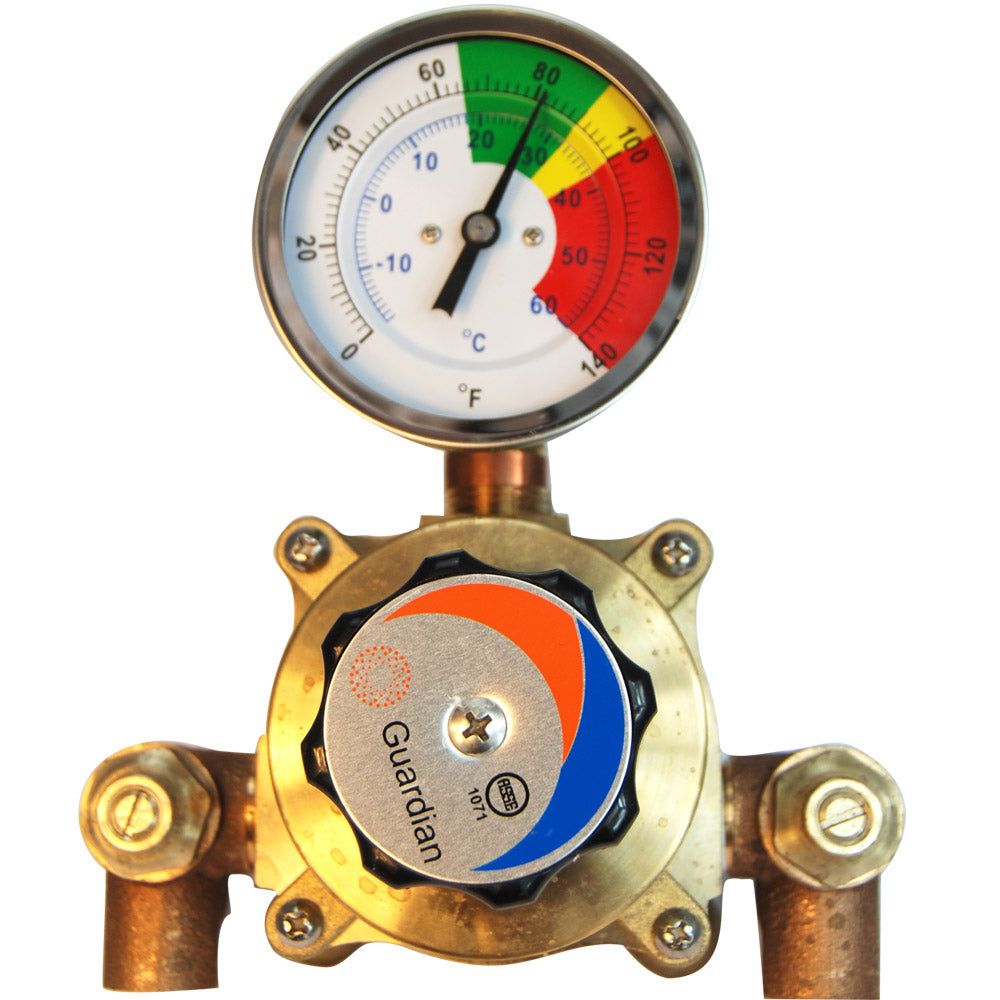

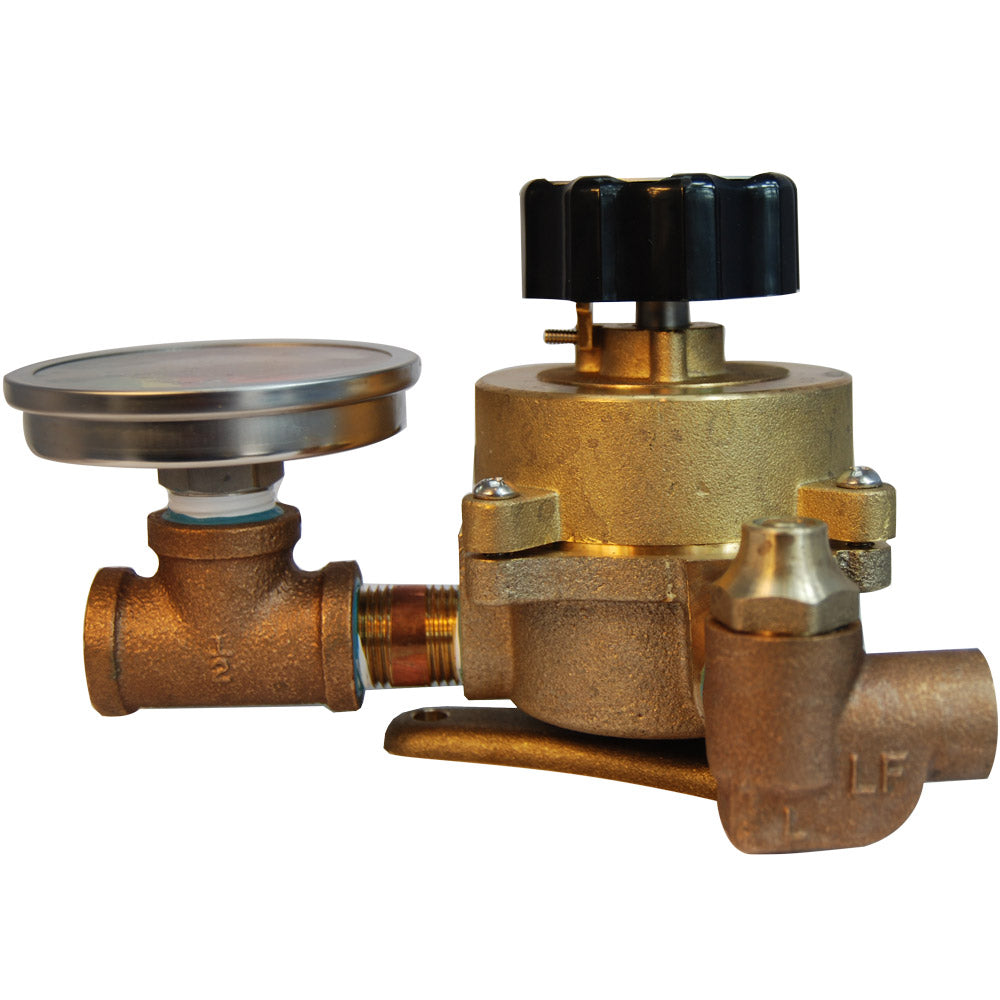

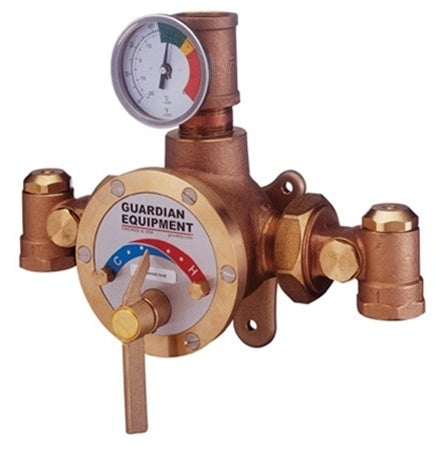

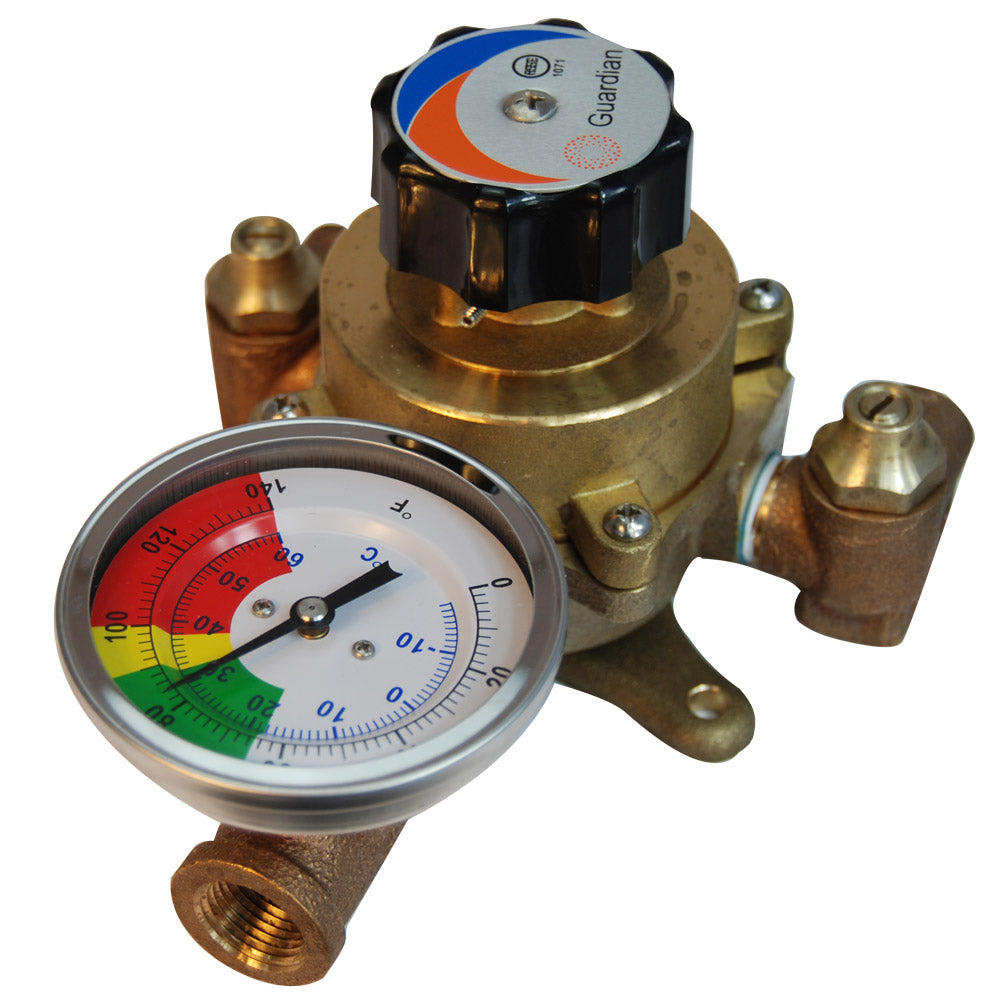

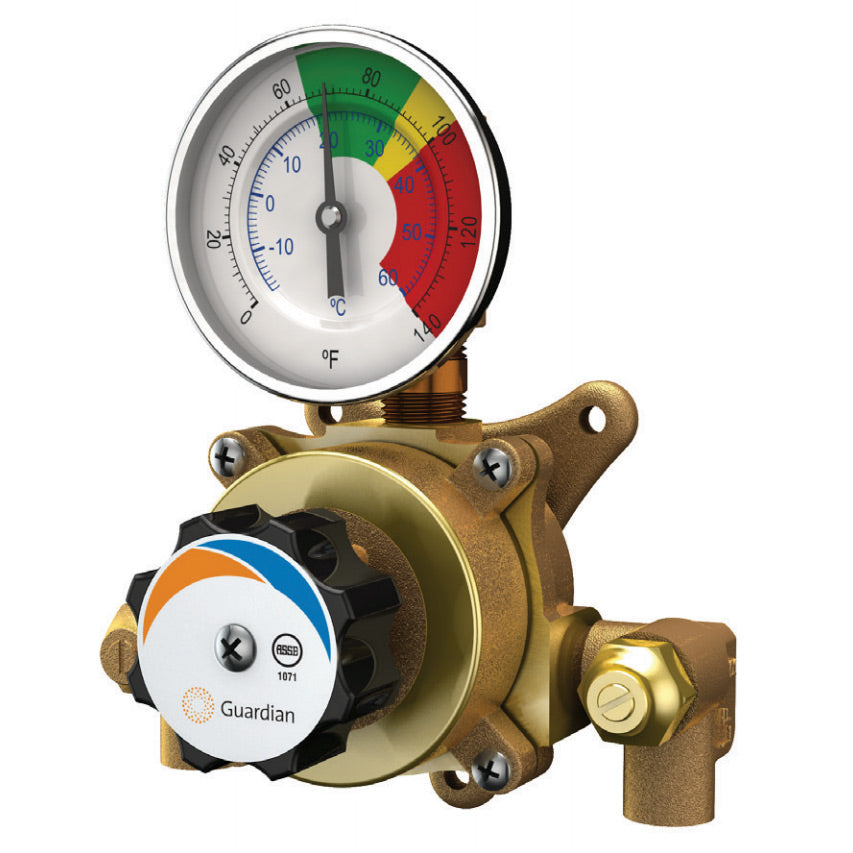

Popular Guardian Tempering Valves Overview

MODEL	DESCRIPTION
G3600LF	Tempering Valve for Eyewash, 6 Gal. Capacity
G3800LF	Tempering Valve for Safety Station, 44 Gal.Capacity
G3900LF	Tempering Valve for Multi-Unit Use, 81 Gal.Capacity

Blend hot and cold water to deliver tepid water toemergency equipment.

Internal thermostat automatically blends incoming watertemperatures to 85°F.
Certified to ASSE 1071.
Certified to meet low-lead requirements.
Built-in fail-safe feature allows delivery of cold water toemergency equipment during hot water supply malfunction.During cold water supply malfunction, valve closes to preventscalding and will not deliver water.

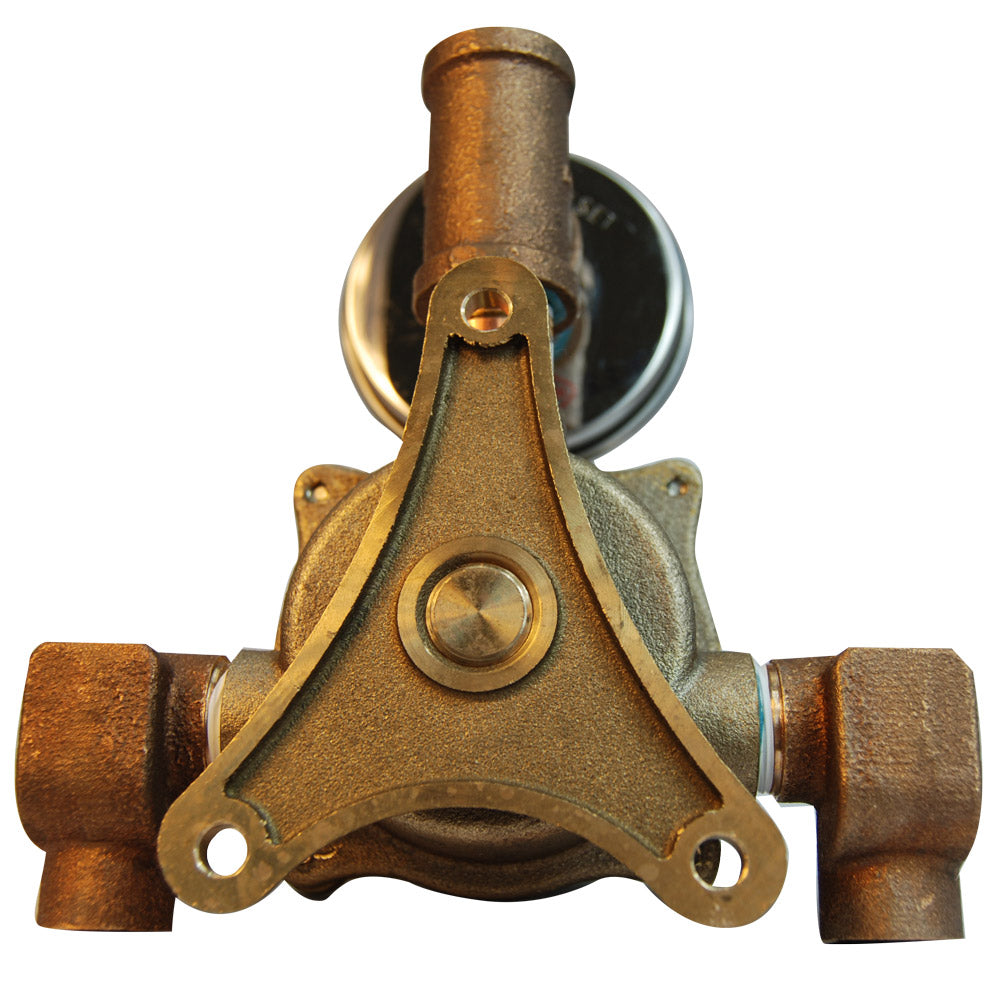

Mounts to wall or panel with included bracket.
Assembled and water tested prior to shipment.
