Acorn S2100 Vertical Emergency Drench Shower w/ Stainless Steel Showerhead
Availability : Usually Ships in 1-3 Business Days

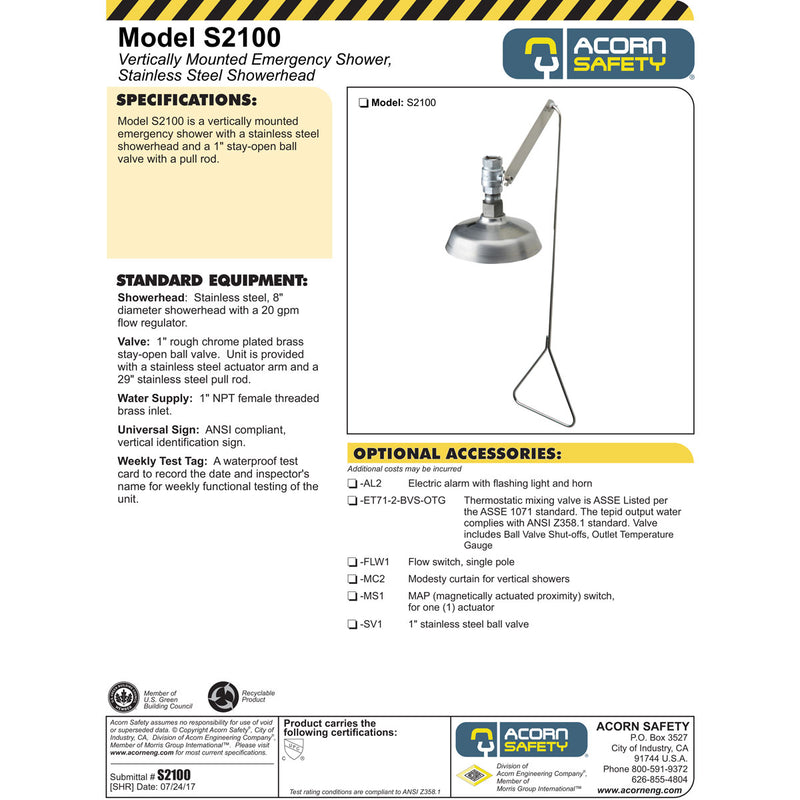

Model S2100 Is A Vertically Mounted Emergency Shower With A Stainless Steel Showerhead And A 1" Stay-Open Ball Valve With A Pull Rod, Meets ANSI Z358.1-2014 Standard.
Showerhead:
Stainless steel, 8" diameter showerhead with a 20 gpm flow regulator.
Valve:
1" rough chrome plated brass stay-open ball valve. Unit is provided with a stainless steel actuator arm and a 29" stainless steel pull rod.
Water Supply:
1" NPT female threaded brass inlet.
Universal Sign:
ANSI compliant, vertical identification sign.
Weekly Test Tag:
A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
| Item | Emergency Safety Shower |
| Mounting | Vertical, Ceiling |
| Shower Head | 8" Stainless Steel with 20 gpm Flow Regulator |
| Operation | Pull Rod with Stainless Steel Actuator Arm (29") |
| Valve | 1" Chrome-Plated Brass Stay-Open Ball Valve |
| Inlet | 1" NPT Female Brass Connection |
| Flow/Pressure | 20 gpm at 30 PSI |

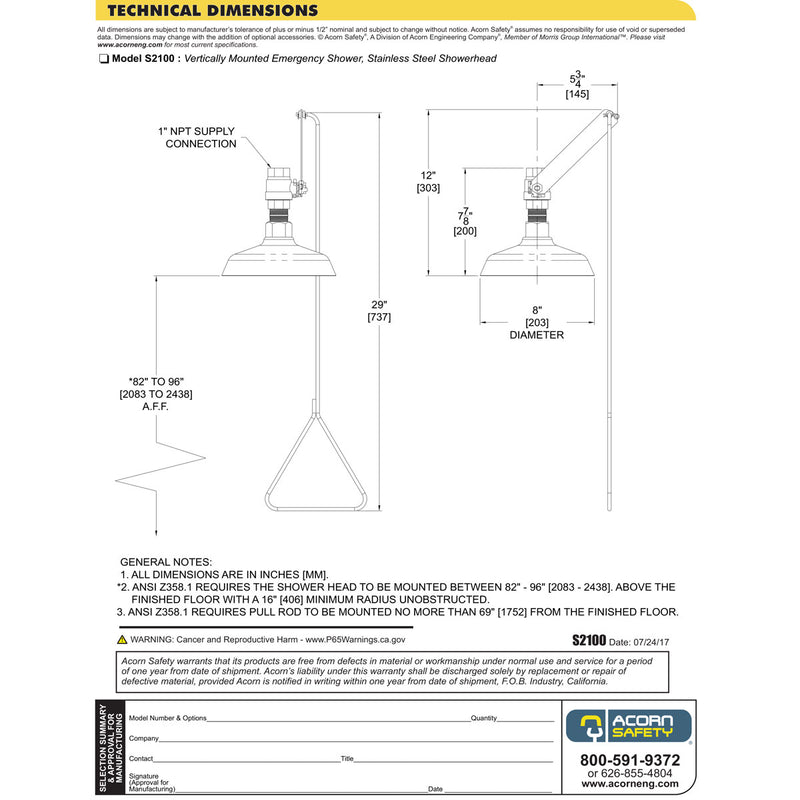

| Height (Mounting) | 82–96 in AFF (ANSI Requirement) |
| Standards | ANSI Z358.1-2014 Compliant |
| Includes | ANSI Identification Sign, Weekly Test Tag |
| Certifications | ASSE 1071 (Optional Mixing Valve) |
| Options | Alarm with Light/Horn, Flow Switch, Modesty Curtain, Proximity Switch |
