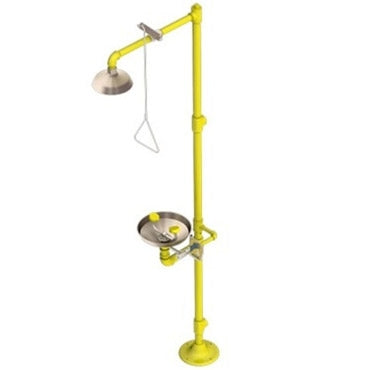

Acorn S2340 Combination Eye/Face Wash Station Drench Shower w/ SS Bowl

✅ Durable Construction: Stainless steel showerhead and bowl with antimicrobial ABS plastic spray heads.

✅ Efficient Flow Rates: Delivers over 20 GPM for the shower and 3.0 GPM for the eye/face wash at 30 PSI.

✅ ANSI Compliant: Meets ANSI Z358.1 standards and includes a universal identification sign and weekly test tag.

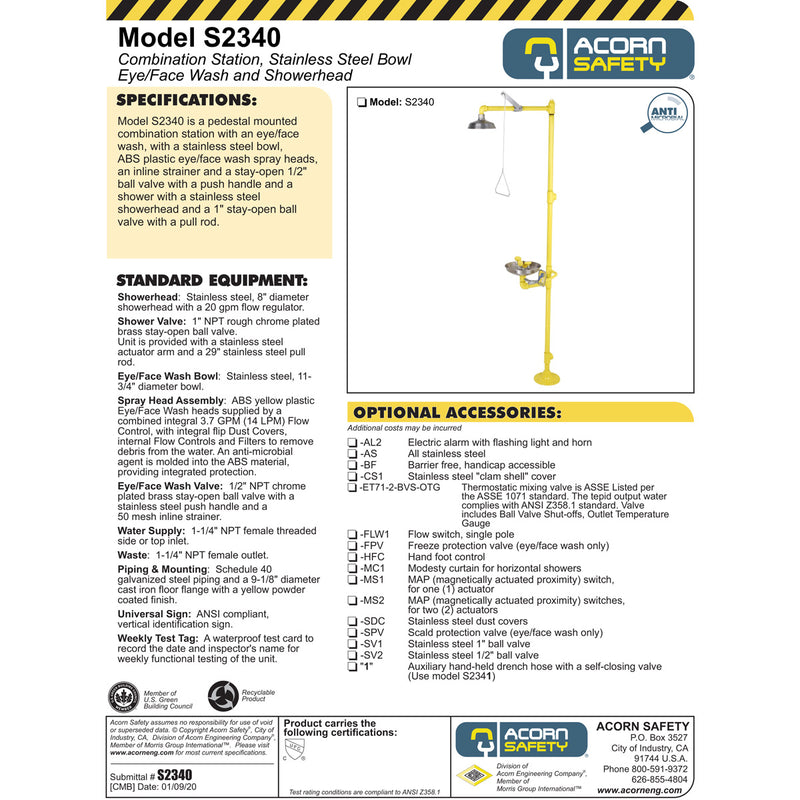

Model S2340 is a pedestal mounted combination station with an eye-face wash, with a stainless steel bowl, ABS plastic eye-face wash spray heads, an inline strainer, and a stay-open 1/2" ball valve with a push handle and a shower with a stainless steel showerhead and a 1" stay-open ball valve with a pull rod.Showerhead: Stainless steel, 8" diameter showerhead with a 20 GPM flow regulator.

Shower Valve: 1" NPT rough chrome plated brass stay-open ball valve. Unit is provided with a stainless steel actuator arm and a 29" stainless steel pull rod.

Eye-Face Wash Bowl: Stainless steel, 113/4" diameter bowl.

Spray Head Assembly: ABS yellow plastic eye-face wash heads with integral flip dust covers, internal flow controls, and filters to remove debris from the water. An antimicrobial agent is molded into the ABS material, providing integrated protection

Eye-Face Wash Valve: 1/2" NPT chrome plated brass stay-open ball valve with a stainless steel push handle and a 50 mesh inline strainer.

Water Supply: 1-1/4" NPT female threaded side or top inlet.

Waste: 1-1/4" NPT female outlet.

Piping & Mounting: Schedule 40 galvanized steel piping and a 9-1/8" diameter cast iron floor flange with a yellow powder-coated finish.

Universal Sign: ANSI compliant, vertical identification sign.

Weekly Test Tag: A waterproof test card to record the date and inspector's name for weekly functional testing of the unit.
