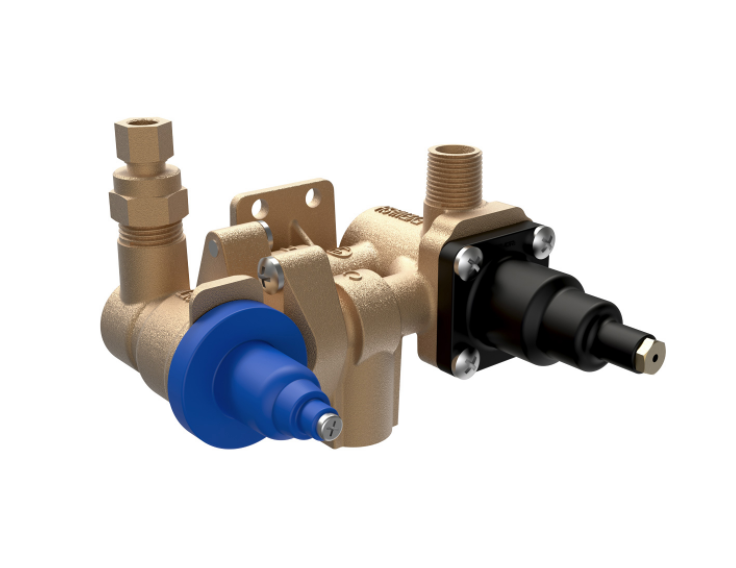

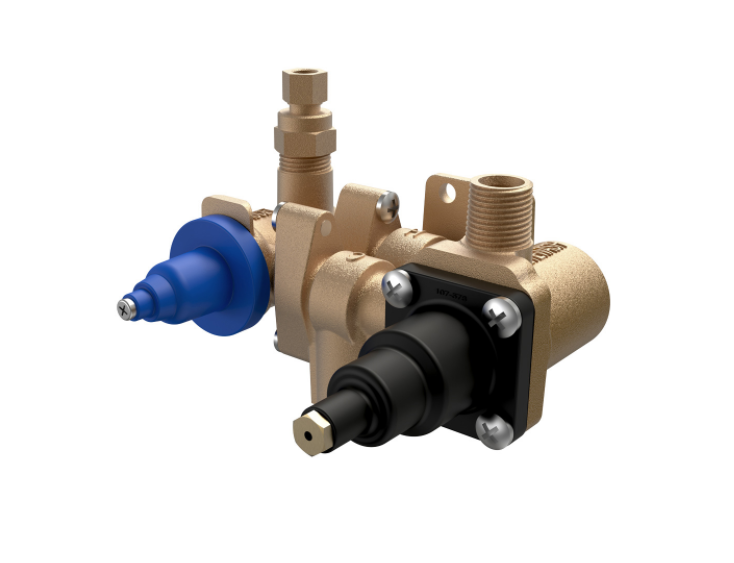

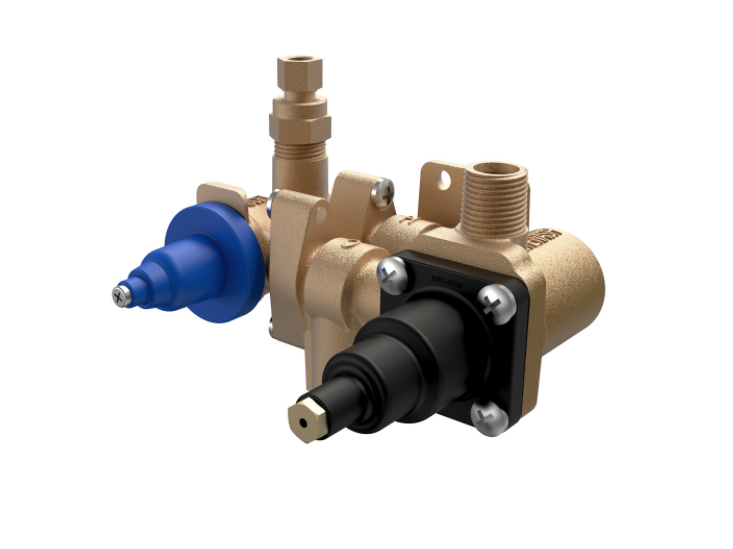

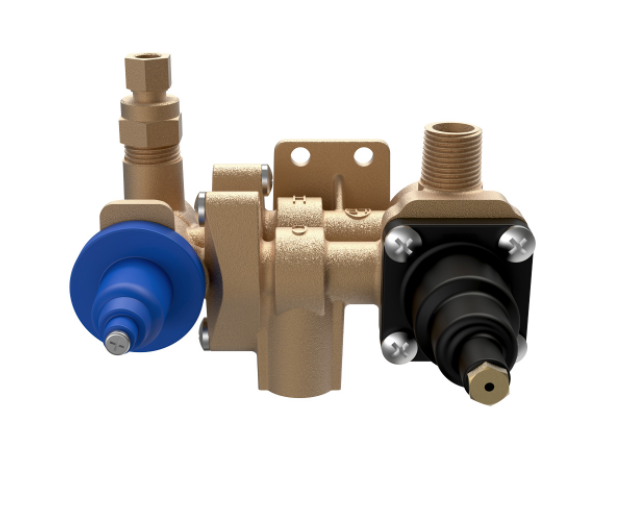

Bradley S19-2010 Navigator Valve for Emergency Eyewash and Faucet
Availability : Usually Ships in 7 Business Days

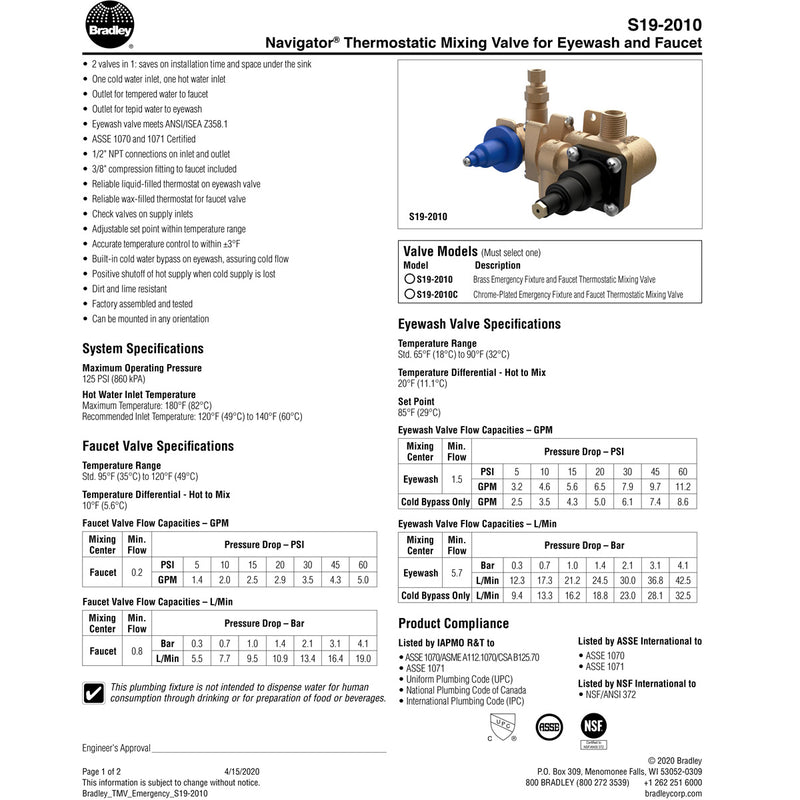

The Bradley S19-2010 Navigator® Emergency Mixing Valve is a compact, dual-purpose solution designed to supply both tempered faucet water and tepid water for emergency eyewash applications. Featuring a reliable wax-filled thermostat for the faucet and a liquid-filled thermostat for the eyewash, this valve ensures precise temperature control within ±3°F. Factory-assembled and tested, the S19-2010 offers fast installation, built-in cold water bypass protection, and compliance with ANSI/ISEA Z358.1, ASSE 1070, and ASSE 1071 standards.
✅ 2 Valves in 1 – Saves installation time and space under the sink
✅ Dual Outlets – Provides tempered water to the faucet and tepid water to the eyewash
✅ Reliable Temperature Control – ±3°F accuracy with liquid-filled eyewash thermostat and wax-filled faucet thermostat
✅ Built-In Safety – Cold water bypass for eyewash and automatic hot shutoff if cold supply is lost
✅ Durable Design – Dirt- and lime-resistant construction, factory assembled and tested
✅ Certified Performance – Meets ANSI/ISEA Z358.1, ASSE 1070, and ASSE 1071 standards
✅ Easy Connections – 1/2” NPT inlets/outlets plus 3/8” compression fitting to faucet
| Item | Tempering Valves |
| Flow Rate | 7 gpm |
| Inlet Size | 1/2" NPT |
| Outlet Size – Eyewash | 1/2" NPT |
| Outlet Size – Faucet | 3/8" Compression |
| Temp. Range | 65°F to 90°F |
| Max Pressure | 125 psi |

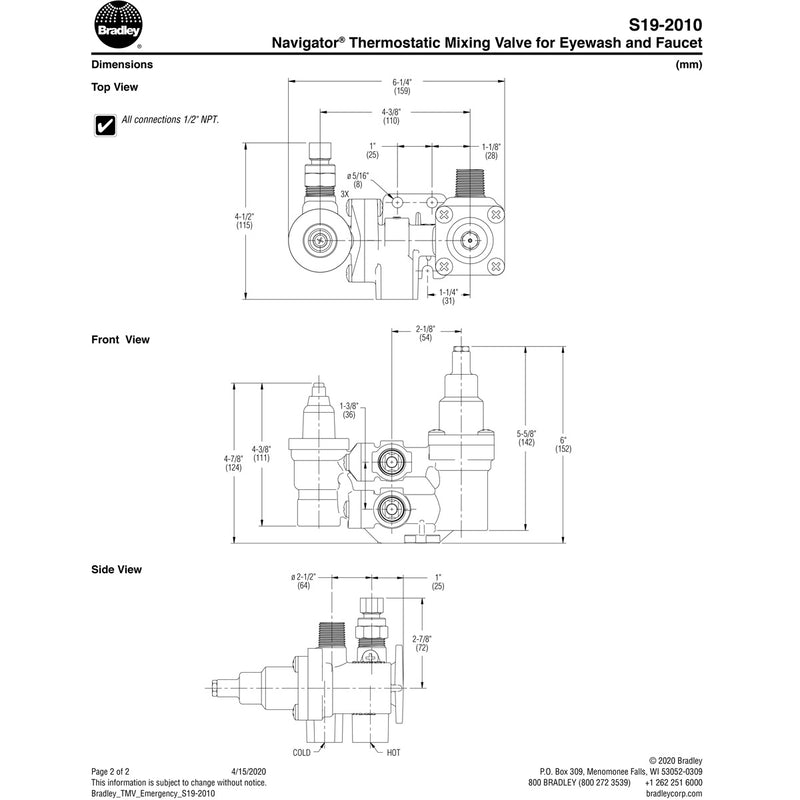

| Overall Width | 8-3/8" |
