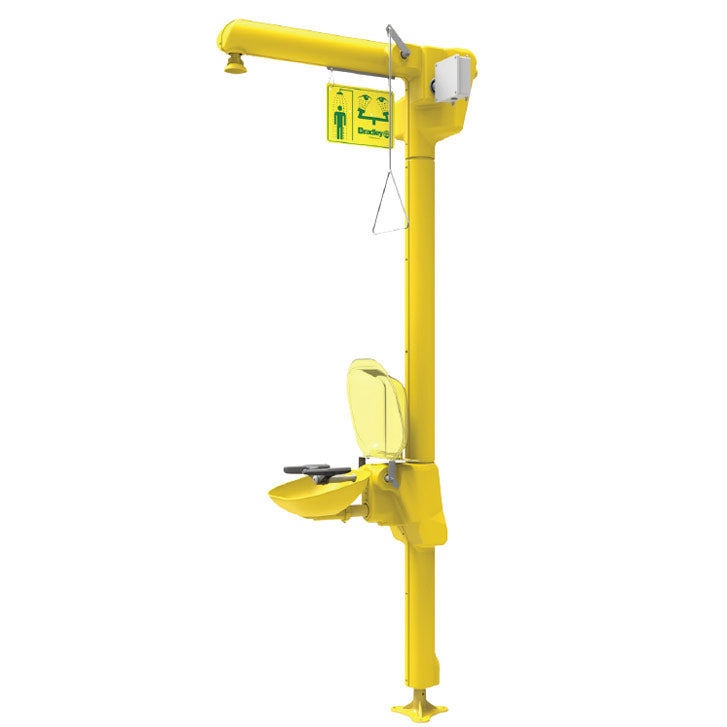

Bradley S19-304GAB General Area Halo Heat Trace Combination Unit, Bottom Supply
Availability : Usually Ships in 20 Business Days

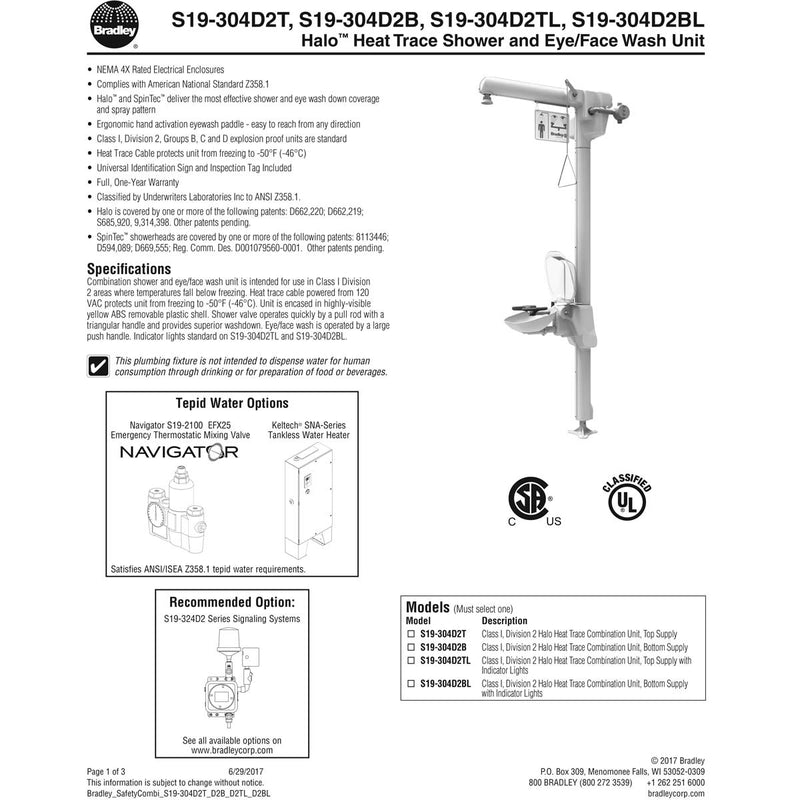

Combination shower and eye/face wash unit is intended for use in general areas where temperatures fall below freezing. Heat trace cable powered from 120 VAC maintains freeze protection for the unit down to -10°F (-23°C). The heat trace cable itself is rated for ambient temperatures to -50°F (-46°C). Unit is encased in a highly-visible yellow ABS plastic removable shell. Shower valve operates quickly by a pull rod with a triangular handle, and SpinTec® showerhead delivers a superior spray pattern. Eye/face wash is operated by a large push handle. Indicator lights are included only on models S19-304GATL and S19-304GABL (not this unit).

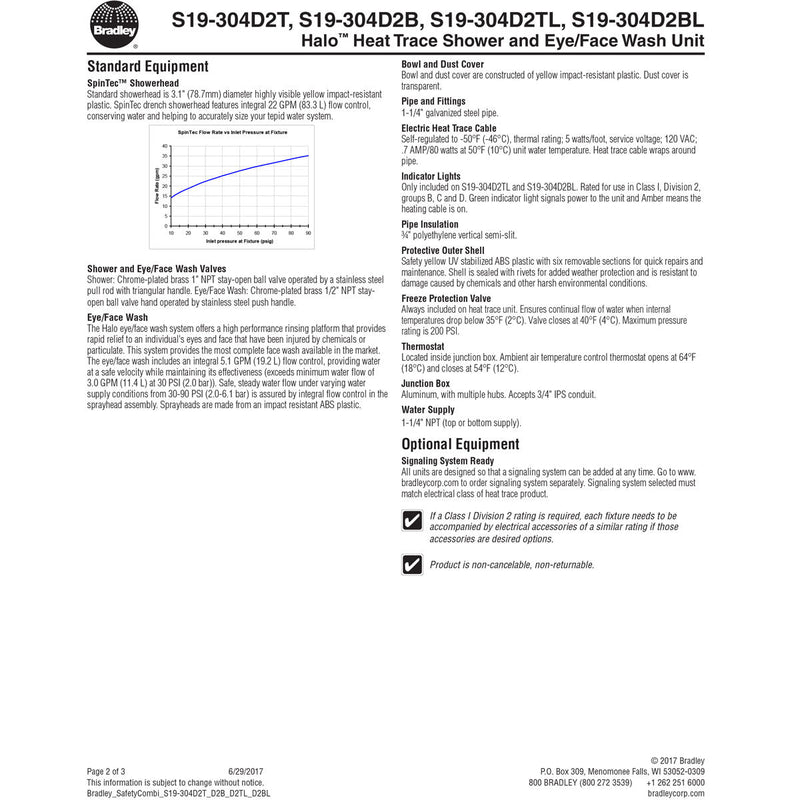

Bowl and Dust Cover
13" bowl and dust cover are constructed of yellow impact-resistant plastic. Dust cover is transparent.
Pipe and Fittings
1-1/4" galvanized steel pipe with painted galvanized finish.
Electric Heat Trace Cable
Self-regulating cable rated to -50°F (-46°C) ambient. Thermal rating: 5 watts/foot. Service voltage: 120 VAC. Electrical load: 0.7 A / 80 watts at 50°F (10°C) unit water temperature. Heat trace cable wraps around pipe for freeze protection.
Indicator Lights
Only included on S19-304GATL and S19-304GABL. Rated for use in general area. Green indicator light signals power to the unit, and amber light signals the heating cable is energized.
Pipe Insulation
3/4" polyethylene vertical semi-slit insulation.
Protective Outer Shell
Safety yellow UV-stabilized ABS plastic with six removable sections for quick repairs and maintenance. Shell is sealed with rivets for added weather protection and is resistant to damage from chemicals and other harsh environmental conditions.
Freeze Protection Valve
Standard on all heat trace models. Ensures continual water flow when internal temperatures drop below 35°F (2°C). Valve closes at 40°F (4°C). Maximum pressure rating: 200 PSI.
Thermostat
Located inside junction box. Ambient air temperature control thermostat opens at 64°F (18°C) and closes at 54°F (12°C).
Junction Box
Plastic, with one extra 3/4" conduit hole.
Water Supply
1-1/4" NPT (top or bottom supply).
| Item | Heat Traced Combination Safety Shower & Halo Eye/Face Wash |
| Series | S19-304GAB |
| Type | Freeze-Resistant, Plumbed Shower with Eye/Face Wash, Bottom Supply |
| Mounting | Floor Mount |
| Operation | Pull Rod (Shower) / Push Plate (Eyewash) |
| Coverage | Eyes and Face |
| Shower Head Material | SpinTec® ABS Plastic |
| Shower Spray Head Diameter | 3-1/10 in |
| Eyewash Bowl Material | Plastic, 13 in Diameter |
| Eyewash Spray Head Material | Plastic, Covered |
| Inlet Pipe Size | 1-1/4 in NPT Male (Bottom Supply with Freeze Protection Valve) |
| Outlet Size | 1-1/4 in NPT Male Drain |
| Valve Material | Chrome-Plated Brass with Freeze Protection |
| Pipe/Stanchion Material | Painted Galvanized Steel |
| Shower Handle Material | Stainless Steel |
| Eyewash Handle Material | Stainless Steel |
| Bowl Style | Covered |
| Flow Rate | Shower ≥20 gpm @ 30 psi / Eyewash ≥3 gpm @ 30 psi |

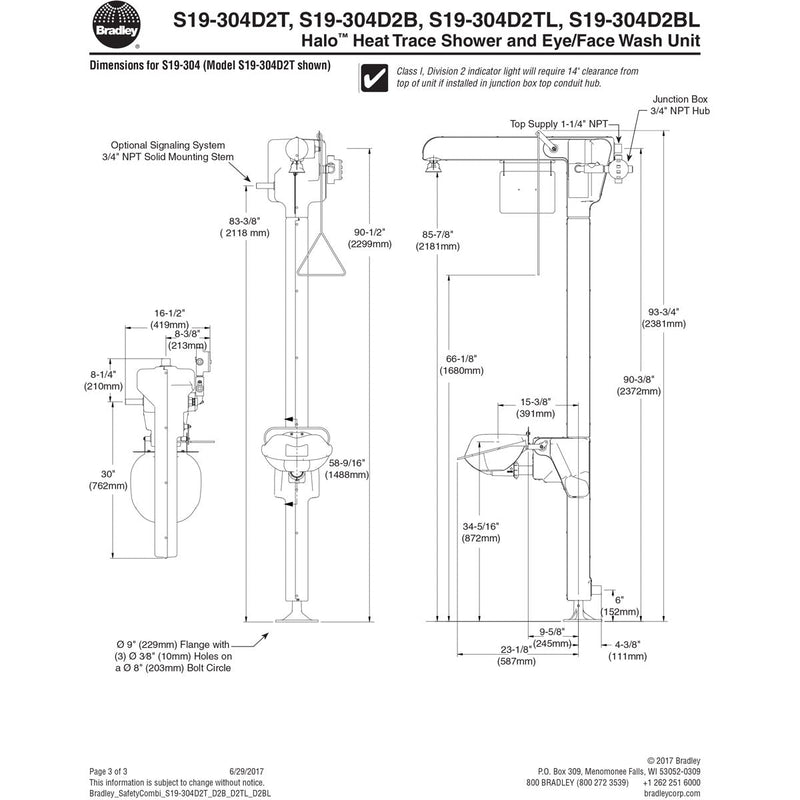

| Dimensions | 93-13/16 in H × 18-1/2 in W × 27-11/16 in D |
| Minimum Operating Temperature | -10°F (With Heat Tracing) |
| Electrical Connection | Hardwired, 120V AC, 0.7 A, NEMA 4X Rated |
| Features | Self-Regulating Heat Tracing, SpinTec® Showerhead, Freeze Protection Valve |
| Standards | ANSI Z358.1, CSA Certified, UL Listed |
| Includes | Universal Identification Sign, Inspection Tag |
| Barrier Free | No |
| ADA Compliant | No |
