Bradley S19-323D Emergency Signaling System, NEMA 3R, Drench
Availability : Usually Ships in 90 Business Days
✅ Automatic Audible & Visual Alarm System
✅ Double Pole, Double Throw Stainless Steel Flow Switch
✅ Weatherproof Amber Strobe, 60 Flashes Per Minute
✅ Weatherproof Horn, 90 dB @ 10 ft
✅ NEMA 3R Rain-Tight, Corrosion-Resistant Enclosure
✅ For Indoor or Outdoor Emergency Applications
✅ Meets ANSI/ISEA Z358.1 Requirements When Installed
✅ 120 VAC Power, Prewired With 6 ft Quick-Connect Cable
✅ Operating Temperature: -40°F to 120°F (-40°C to 49°C)

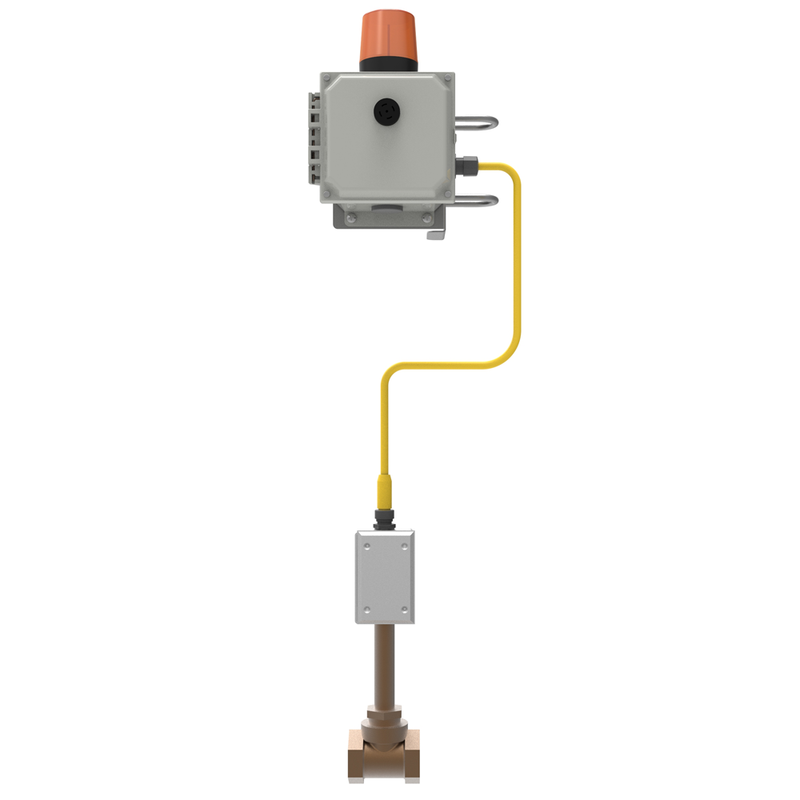

The Bradley S19-323D Emergency Signaling System provides an automatic audible and visual warning whenever a drench shower or eyewash is in use. Designed for indoor or outdoor environments, the system includes a weatherproof horn and amber strobe housed in a NEMA 3R rain-tight, corrosion-resistant enclosure. The flow switch activates both horn and strobe when water flow reaches 2.4 GPM or greater, ensuring clear, immediate notification in critical emergency situations.
System Connections: Compatible with most combination drench shower/eyewash or drench shower units with 1¼″ NPT inlet piping and a 30 GPM water source. Remote hookup is possible via contacts in the flow switch junction box or central control board.
Central Control: Operates from a central control board housed in a NEMA 3R enclosure. Provides multiple input/output connections for integration with building management systems.
Horn & Strobe: Weatherproof horn rated 90 dB at 10 ft, paired with a weatherproof amber strobe flashing 60 times per minute. Both are designed for reliable operation in high-noise, industrial environments.
Flow Switch: Stainless steel, double pole/double throw (DPDT) design. Watertight and pre-assembled for easy installation.
Electrical: 120 VAC, 50/60 Hz power requirement. Prewired with a 6 ft waterproof quick-connect cable for simplified hookup.
Operating Temperature: Rated for ambient environments from -40°F to 120°F (-40°C to 49°C).
| Item | Emergency Signaling System |
| Series | S19-323D |
| Type | Alarm & Light System for Drench Shower/Eyewash |
| Mounting | Wall-Mounted, NEMA 3R Enclosure |
| Operation | Flow Switch Activates Horn & Strobe When Unit is in Use |
| Horn | Weatherproof Horn, 90 dB @ 10 ft |
| Strobe | Weatherproof Amber Strobe, 60 Flashes/Minute |
| Enclosure Rating | NEMA 3R Rain-Tight, Corrosion-Resistant |
| Flow Switch | Detects Water Flow of 2.4 GPM or Greater |
| Power Requirements | 120 VAC, 50/60 Hz |
| Conduit Openings | Two ½″ NPT |
| Ambient Operating Temp | -40°F to 120°F (-40°C to 49°C) |
| Compliance | Meets ANSI/ISEA Z358.1 When Properly Installed |
