Halo eyewash, plastic showerhead, stainless steel bowl

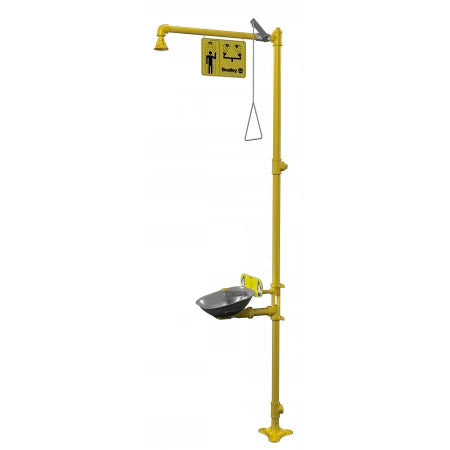

Halo Combination Safety Shower Eyewash Station, Stainless Steel Bowl, Plastic Showerhead, Hinged Dust Caps, Meets ANSI Z358.1-2014. Anti-Microbial Sprayheads Provide Additional Protection From Contaminants. Also Known as Part # S193140A1AADA00
✅ 1 1/4" Water Supply, 1 1/4" Waste
✅ Sprayheads are Coated with an Anti-Microbial Finish, Providing Additional Contaminate Protection
✅ Self Draining Aquaduct Design and Integral Strainer Helps Reduce the Risk of Bacteria Growth and Debris Build-up
✅ High Visibility Yellow BradTect Coating Provides Superior Corrosion Resistance
✅ Ergonomic Hand Activation Handle is Located in the Rear of the Unit, Providing Easy Access From any Direction
✅ Separate Supply and Waste Pipes Meet CEN and Plumbing Requirements
✅ Flip Top Dust Cover Caps are Hinged for a More Secure Hold to Effectively Keep Dust and Debris Out of the Sprayheads
✅ SpinTec Safety Shower Head Includes Integral Flow Control While Providing Uniform Water Distribution Includes Inspection Tags and Safety Identification Sign

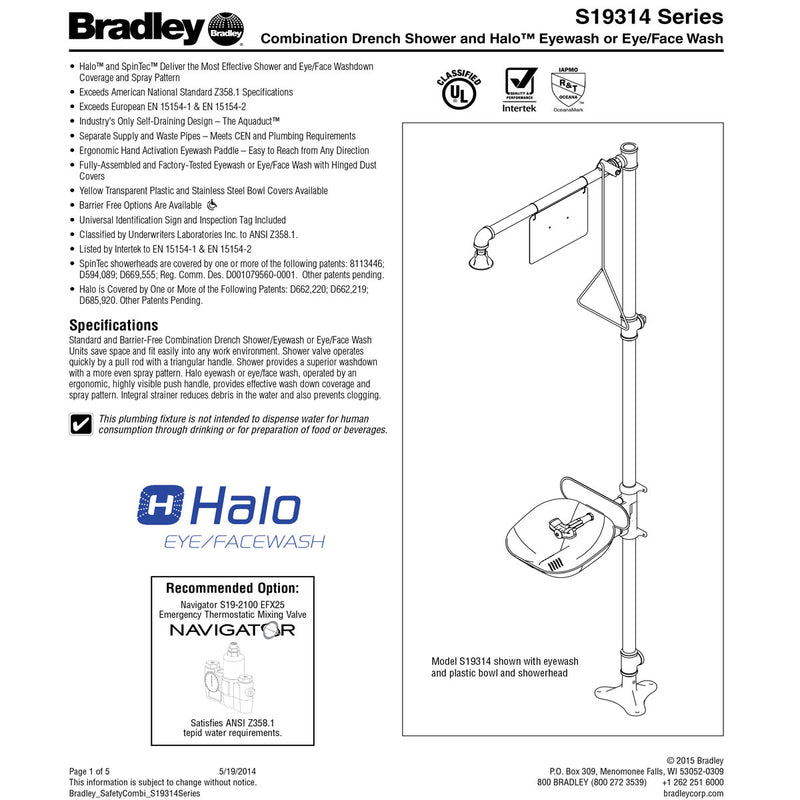

Standard Combination Drench Shower/Eyewash Units save space and fit easily into any work environment. Shower valve operates quickly by a pull rod with a triangular handle. Shower provides a superior washdown with a more even spray pattern. Halo eyewash, operated by an ergonomic, highly visible push handle, provides effective wash down coverage and spray pattern. Integral strainer reduces debris in the water and also prevents clogging.

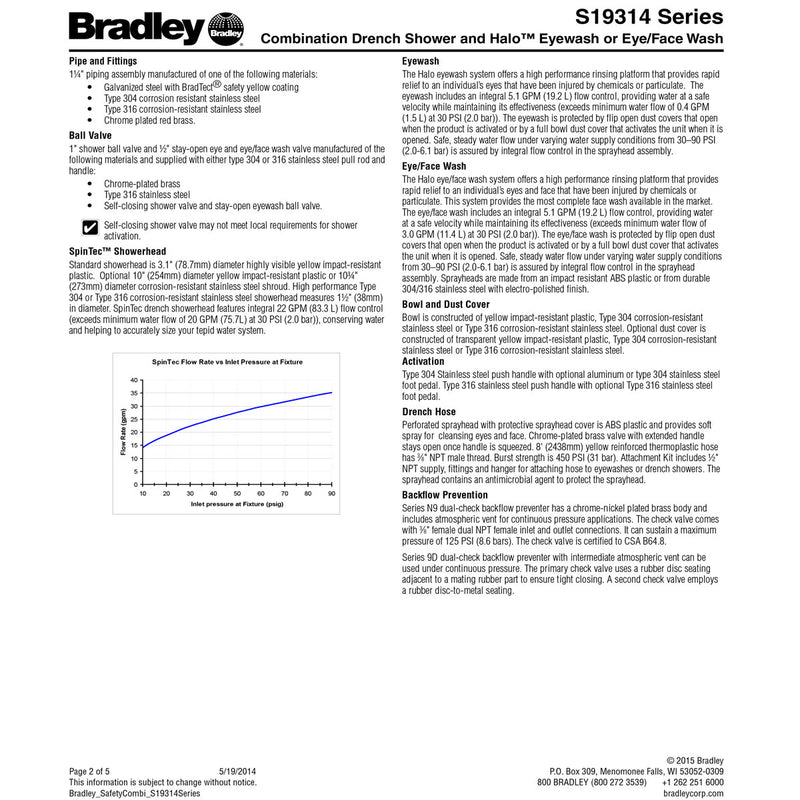

Pipe and Fittings
Piping to 1-1/4" NPT water supply inlet on unit. Piping to 1-1/4" NPT drain outlet. 1-1/4" piping assembly manufactured of one of the following materials:
• Galvanized steel with BradTect® safety yellow coating
Ball Valve
1" shower ball valve and ½" stay-open eyewash valve manufactured of the following materials and supplied with type 304 stainless steel pull rod and handle:
• Chrome-plated brass
SpinTec™ Showerhead
Standard showerhead is 3.1" (78.7mm) diameter highly visible yellow impact-resistant plastic or optional 10¾" (273mm) diameter corrosion-resistant stainless steel shroud (S19314F). SpinTec drench showerhead features integral 22 GPM (83.3 L) flow control (exceeds minimum water flow of 20 GPM (75.7L) at 30 PSI (2.0 bar)), conserving water and helping to accurately size your tepid water system.
Eyewash
The Halo eyewash system offers a high performance rinsing platform that provides rapid relief to an individual’s eyes that have been injured by chemicals or particulate. The eyewash includes an integral 5.1 GPM (19.2 L) flow control, providing water at a safe velocity while maintaining its effectiveness (exceeds minimum water flow of 0.4 GPM (1.5 L) at 30 PSI (2.0 bar)). The eyewash is protected by flip open dust covers that open when the product is activated by Type 304 stainless steel push handle. Safe, steady water flow under varying water supply conditions from 30–90 PSI (2.0-6.1 bar) is assured by integral flow control in the sprayhead assembly. Sprayheads are made from an impact resistant ABS plastic.
Bowl
Bowl is constructed of Type 304 corrosion-resistant stainless steel.
Item | Combination Safety Shower Eyewash Stations |
Sprayhead | Eyewash |
Shower Mounting | Floor Mount |
Eyewash Bowl Material | Stainless Steel |
Operation | Push Handle |
Shower Operation | Pull Down Arm |
Shower Head Material | Plastic |
