Availability : Usually Ships in 4 Business Days

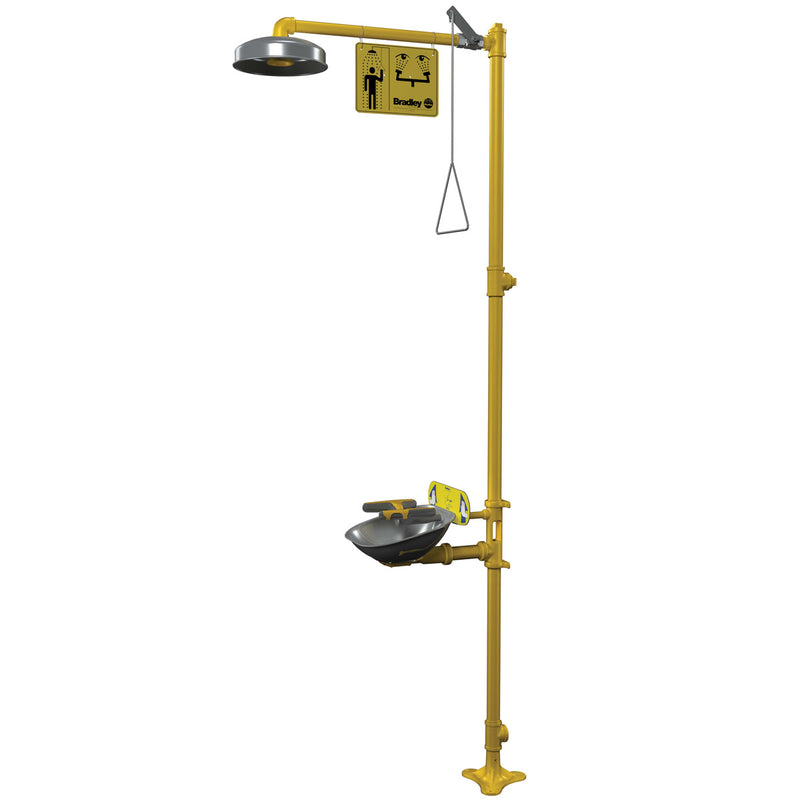

Plastic showerhead with stainless steel shroud and bowl.

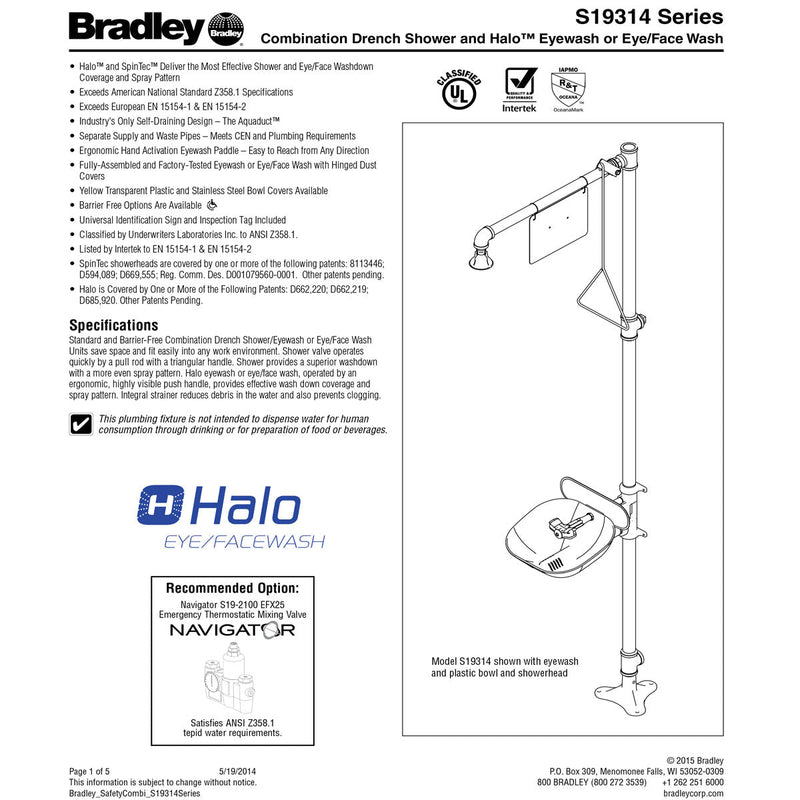

Halo Drench Shower & Eye/Face Wash Station, Stainless Steel Bowl & Showerhead, Hinged Dust Caps, Meets ANSI Z358.1-2014. Anti-Microbial Sprayheads Provide Additional Protection From Contaminants. Also Known as Part # S193140A1CBDA00
Standard and Barrier-Free Combination Drench Shower/Eyewash or Eye/Face Wash Units save space and fit easily into any work environment. Shower valve operates quickly by a pull rod with a triangular handle. Shower provides a superior washdown with a more even spray pattern. Halo eyewash or eye/face wash, operated by an ergonomic, highly visible push handle, provides effective wash down coverage and spray pattern. Integral strainer reduces debris in the water and also prevents clogging.
✅ 1 1/4" Water Supply, 1 1/4" Waste
✅ Sprayheads are Coated with an Anti-Microbial Finish, Providing Additional Contaminate Protection
✅ Self Draining Aquaduct Design and Integral Strainer Helps Reduce the Risk of Bacteria Growth and Debris Build-up
✅ High Visibility Yellow BradTect Coating Provides Superior Corrosion Resistance
✅ Ergonomic Hand Activation Handle is Located in the Rear of the Unit, Providing Easy Access From any Direction
✅ Separate Supply and Waste Pipes Meet CEN and Plumbing Requirements
✅ Flip Top Dust Cover Caps are Hinged for a More Secure Hold to Effectively Keep Dust and Debris Out of the Sprayheads
✅ SpinTec Safety Shower Head Includes Integral Flow Control While Providing Uniform Water Distribution Includes Inspection Tags and Safety Identification Sign

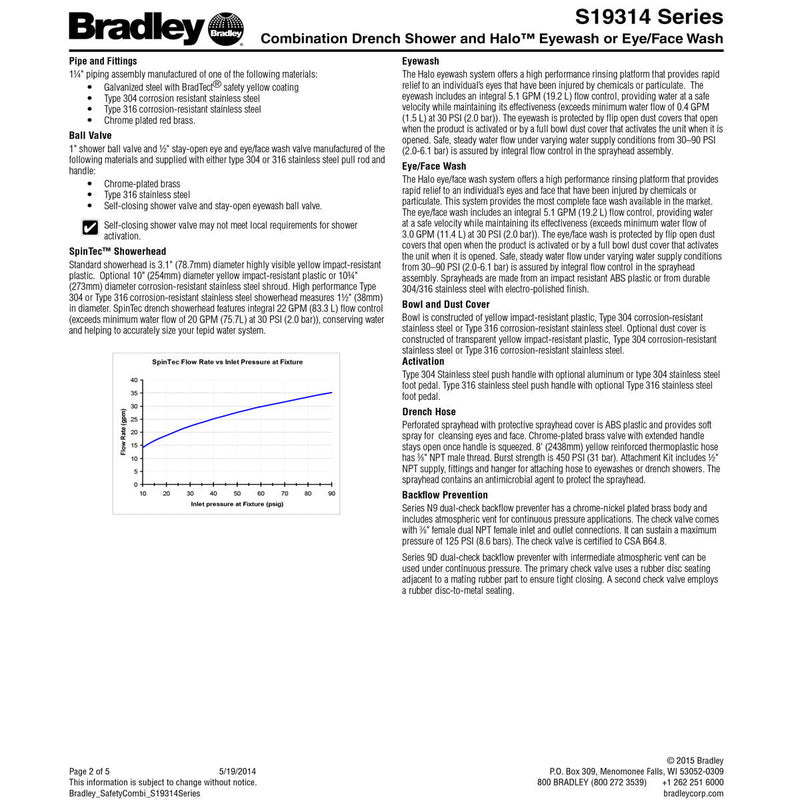

Pipe and Fittings
Piping to 1-1/4" NPT (BSPP) water supply inlet on unit. Piping to 1-1/4" NPT (BSPP) drain outlet for eyewash. 1¼" piping assembly manufactured of one of the following materials:
• Galvanized steel with BradTect® safety yellow coating
• Type 304 corrosion resistant stainless steel
• Type 316 corrosion-resistant stainless steel
Ball Valve
1" stay-open shower ball valve and ½" stay-open eye and eye/face wash valve manufactured of the following materials and supplied with either type 304 or 316 stainless steel pull rod and handle:
• Chrome-plated brass
• Type 316 stainless steel
SpinTec™ Showerhead

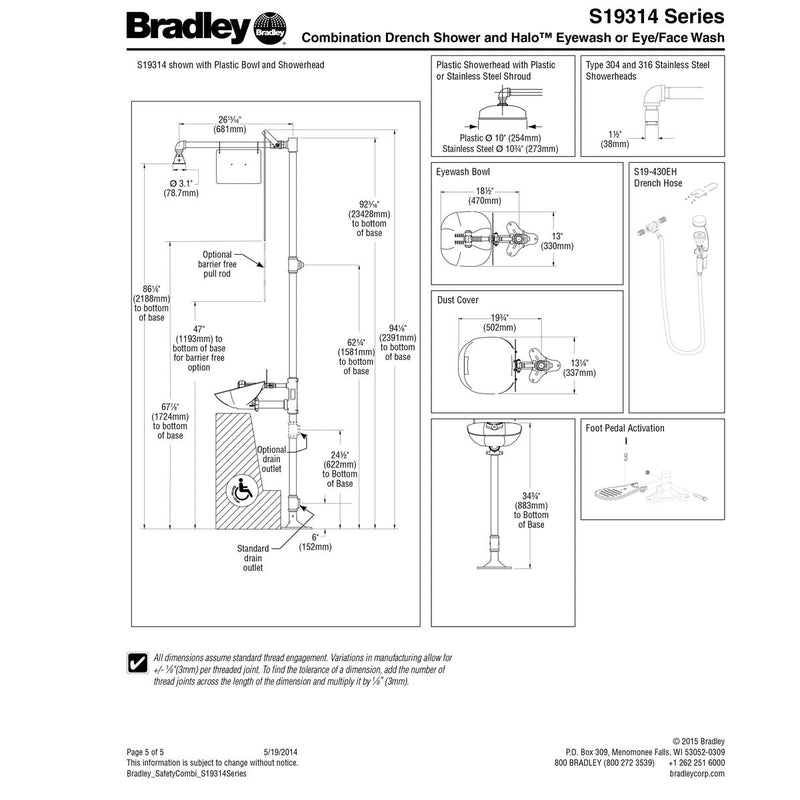

Standard showerhead is 3.1" (78.7mm) diameter highly visible yellow impact-resistant plastic. Optional 10" (254mm) diameter yellow impact-resistant plastic or 10¾" (273mm) diameter corrosion-resistant stainless steel shroud. High performance Type 304 or Type 316 corrosion-resistant stainless steel showerhead measures 1½" (38mm) in diameter. SpinTec drench showerhead features integral 22 gpm (83.3 Lpm) flow control (exceeds minimum water flow of 20 gpm (75.7 Lpm) at 30 PSI (2.0 bar)), conserving water and helping to accurately size your tepid water system.
Eyewash
The Halo eyewash system offers a high performance rinsing platform that provides rapid relief to an individual’s eyes that have been injured by chemicals or particulate. The eyewash includes an integral 5.1 gpm (19.2 Lpm) flow control, providing water at a safe velocity while maintaining its effectiveness (exceeds minimum water flow of 0.4 gpm (1.5 Lpm) at 30 PSI (2.0 bar)). The eyewash is protected by flip open dust covers that open when the product is activated or by a full bowl dust cover that activates the unit when it is opened. Safe, steady water flow under varying water supply conditions from 30–90 PSI (2.0-6.1 bar) is assured by integral flow control in the sprayhead assembly.
Eye/Face Wash
The Halo eye/face wash system offers a high performance rinsing platform that provides rapid relief to an individual’s eyes and face that have been injured by chemicals or particulate. This system provides the most complete face wash available in the market. The eye/face wash includes an integral 5.1 gpm (19.2 Lpm) flow control, providing water at a safe velocity while maintaining its effectiveness (exceeds minimum water flow of 3.0 gpm (11.4 Lpm) at 30 PSI (2.0 bar)). The eye/face wash is protected by flip open dust covers that open when the product is activated or by a full bowl dust cover that activates the unit when it is opened. Safe, steady water flow under varying water supply conditions from 30–90 PSI (2.0-6.1 bar) is assured by integral flow control in the sprayhead assembly. Sprayheads are made from an impact resistant ABS plastic or from durable 316 stainless steel with electro-polished finish.
Bowl and Dust Cover
Bowl is constructed of yellow impact-resistant plastic, Type 304 corrosion-resistant stainless steel or Type 316 corrosion-resistant stainless steel. Optional dust cover is constructed of transparent yellow impact-resistant plastic, Type 304 corrosion-resistant stainless steel or Type 316 corrosion-resistant stainless steel.
Activation
Type 304 Stainless steel push handle with optional aluminum or type 304 stainless steel foot pedal. Type 316 stainless steel push handle with optional Type 316 stainless steel foot pedal.
Drench Hose
Perforated sprayhead with protective sprayhead cover is ABS plastic and provides soft spray for cleansing eyes and face. Chrome-plated brass valve with extended handle stays open once handle is squeezed. 8' (2438mm) yellow reinforced thermoplastic hose has 3 ⁄8" NPT male thread. Burst strength is 450 PSI (31 bar). Attachment Kit includes ½" NPT supply, fittings and hanger for attaching hose to eyewashes or drench showers. The sprayhead contains an antimicrobial agent to protect the sprayhead.
Backflow Prevention
Series N9 dual-check backflow preventer has a chrome-nickel plated brass body and includes atmospheric vent for continuous pressure applications. The check valve comes with 3 ⁄8" female dual NPT female inlet and outlet connections. It can sustain a maximum pressure of 125 PSI (8.6 bars). The check valve is certified to CSA B64.8.
Series 9D dual-check backflow preventer with intermediate atmospheric vent can be used under continuous pressure. The primary check valve uses a rubber disc seating adjacent to a mating rubber part to ensure tight closing. A second check valve employs a rubber disc-to-metal seating.
Item | Combination Safety Shower Eyewash Stations |
Sprayhead | Eye/Facewash |
Shower Mounting | Floor Mount |
Eyewash Bowl Material | Stainless Steel |
Operation | Push Handle |
Shower Operation | Pull Down Arm |
Shower Head Material | Stainless Steel |
