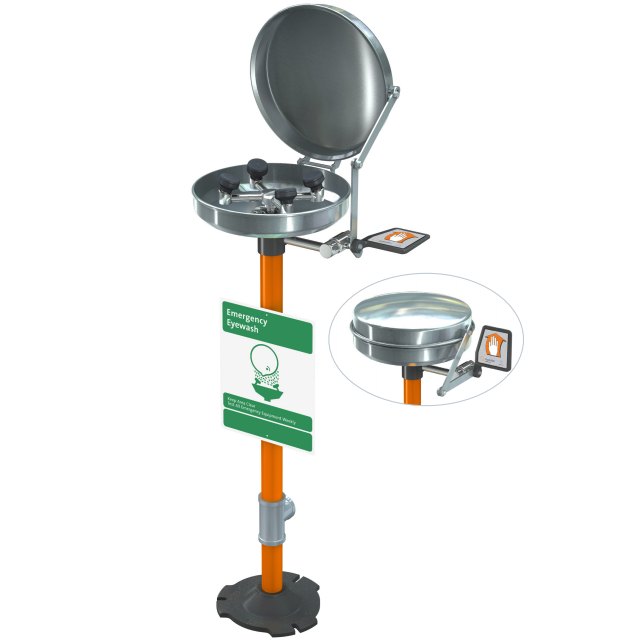

APPLICATION: Free standing, pedestal mounted WideArea eye/face wash. Unit has stainless steel cover to protect bowl from dust, dirt and other contaminants. Four GS-Plus spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.
SPRAY HEAD ASSEMBLY: Four GS-Plus spray heads. Each head has an internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL: 11 1/2" stainless steel with bowl cover. Cover is raised automatically when flag handle is activated. Cover closes when handle is returned to closed position.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers on vertical piping for high visibility and corrosion resistance.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment. br>
|Eyewash Bowl Material||Stainless Steel|
