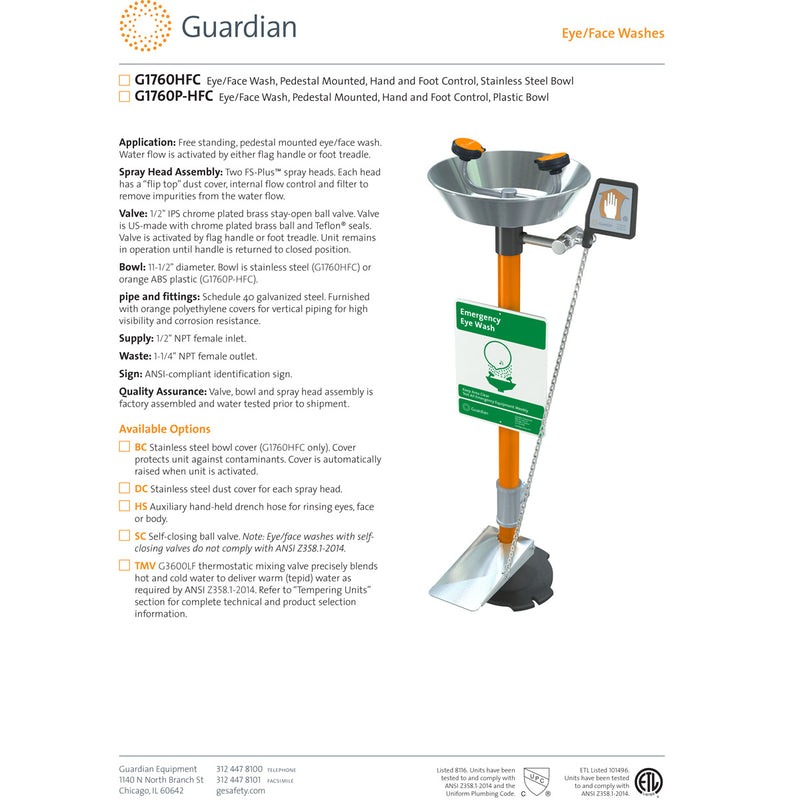

Pedestal mounted eye/face wash features 12" stainless steel bowl with galvanized steel pipe and fittings. Never lose dust covers again! Spray head assembly has two Fine Spray outlet heads with "flip-top" dust covers mounted on chrome plated brass supply arms. Activated by a 1/2" IPS chrome plated brass stay-open ball valve with cast aluminum flag handle or convenient foot treadle. Bowl acts like a sink to drain water away. 1 1/4" IPS waste outlet. Unit comes with orange ABS pipe covering for high visibility. Unit meets ANSI Z358.1 standard as primary eye/face wash. Complete with ANSI compliant identification sign.
APPLICATION: Free standing, pedestal mounted eye/face wash. Water flow is activated by either flag handle or foot treadle.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Valve is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position.
BOWL: 11 1/2" diameter. Bowl is stainless steel (G1760HFC) or orange ABS plastic (G1760P-HFC).
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment. br>
APPLICATION: Free standing, pedestal mounted eye/face wash. Water flow is activated by either flag handle or foot treadle.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Valve is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position.
BOWL: 11 1/2" diameter. Bowl is stainless steel (G1760HFC) or orange ABS plastic (G1760P-HFC).
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment. br>
| Item | Pedestal-Mount Eyewash |
| Sprayhead | Eye/Facewash |
| Mounting | Floor Mount |
| Eyewash Bowl Material | Stainless Steel |
| Operation | Push Handle/Foot |
