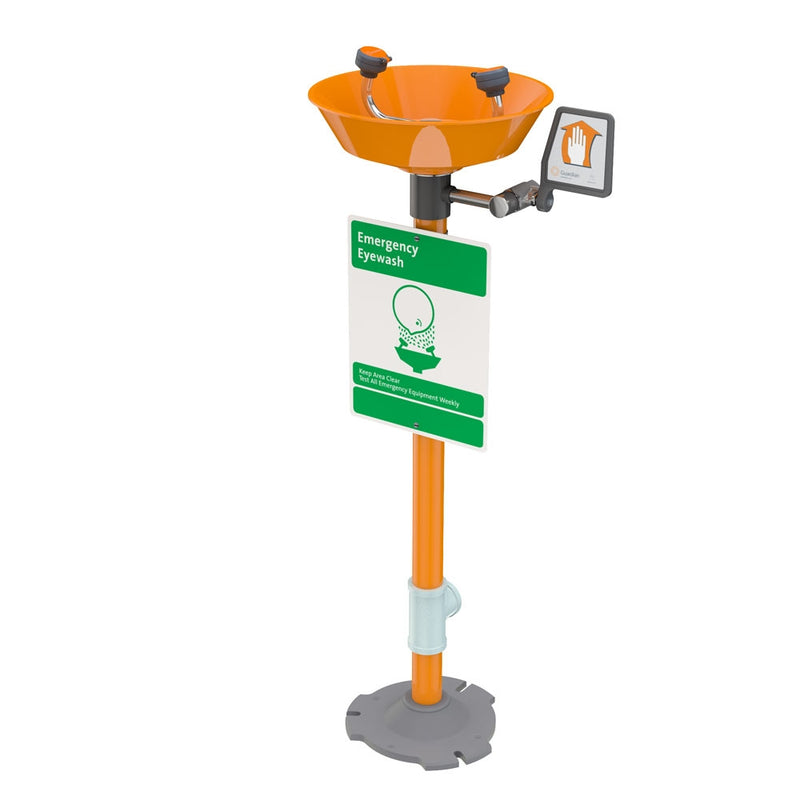

Guardian G1825P Eyewash Station, Pedestal Mounted, Plastic Bowl
Availability : Usually Ships in 10 Business Days
✅ Built-in flow control and filter
✅ Push handle for easy activation
✅ Pedestal-mounted design for stability
✅ Two GS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes
APPLICATION: Free standing, pedestal mounted eyewash. Two GS-Plus spray-type spray heads deliver a flood of water for rinsing eyes.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL: 11 1/2" diameter orange ABS plastic.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve, bowl and spray head assembly is factory assembled and water tested prior to shipment.
| Item | Pedestal-Mount Eyewash |
| Sprayhead | Eyewash (2 Covered Heads) |
| Mount Type | Floor |
| Installation Type | Plumbed |
| Eyewash Bowl Material | 11-1/2 in Plastic (Uncovered) |
| Operation | Push Handle |
| Activation | Push Plate |
| Spray Head Material | Polypropylene |
| Head Dia | 1-1/2 in |
| Bowl Dia | 11-1/2 in |
| Height | 38 in |
| Width | 16 in |
| Depth | 11-1/2 in |
| Inlet Pipe Size | 1/2 in NPT Female |
| Outlet Pipe Size | 1-1/4 in NPT Female |
| Valve Material | Chrome Plated Brass Stay-Open Ball Valve |
| Pipe Material | Galvanized Steel with Polyethylene Covers |
| Fitting Material | Chrome Plated Brass |
| Includes | Hi-Visibility Identification Sign, Inspection Tag, Nylon Flip-Top Dust Cover |
| Standards | ANSI Z358.1-2014 |
| ANSI Compliant | Yes |
| Coverage | Eyes |
| ADA Compliance | No |
| Assembly | Assembled |
| Weight | 30 lb |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
