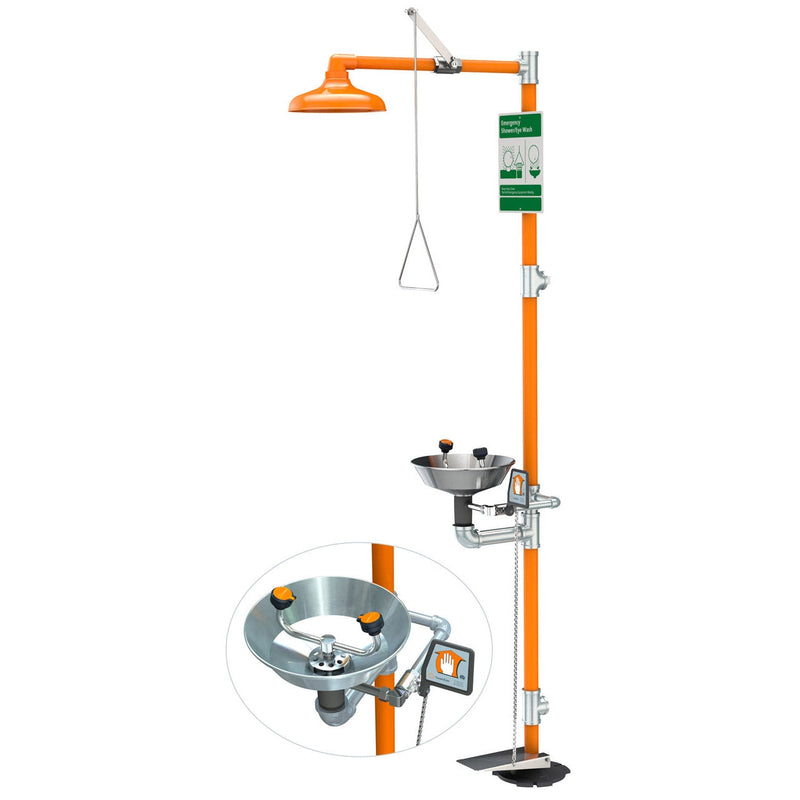

The Guardian G1902P-HFC offers the convenience of an eyewash and a drench shower in one convenient freestanding solution for your commercial setting. With the unit, you can provide complete protection for your employees while using only a minimal amount of space. The combination unit features a 10-inch orange ABS plastic bowl and has a pair of GS-Plus sprayheads. To protect the sprayheads from debris, the sprayheads have flip-top plastic covers. Integral flow control in the sprayheads helps to conserve water. Measuring 10 inches in diameter, the drench shower head is crafted from orange ABS plastic. The pipes in the unit are made of schedule 40 galvanized steel finished with corrosion-resistant orange polyethylene coverings. The eyewash valve is a chrome-plated brass stay open ball valve with Teflon seals. Both a flag handle and a foot treadle are provided for activation. The shower valve is a chrome-plated brass stay open ball valve and uses a 29-inch stainless steel pull rod for activation. An ANSI-compliant identification sign comes with the unit. Unit meets ANSI Z358.1-2014 standard as primary eye wash and emergency shower.

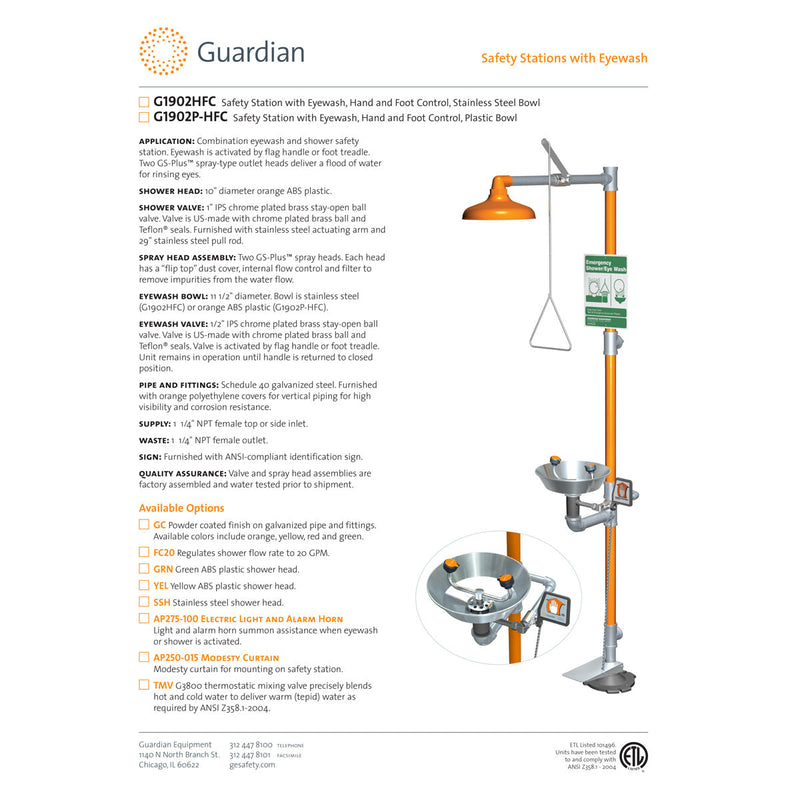

APPLICATION: Combination eyewash and shower safety station. Eyewash is activated by flag handle or foot treadle. Two GS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes.
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYE/FACE WASH BOWL: 11 1/2" diameter plastic bowl.
EYE/FACE WASH VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Valve is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
APPLICATION: Combination eyewash and shower safety station. Eyewash is activated by flag handle or foot treadle. Two GS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes.
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYE/FACE WASH BOWL: 11 1/2" diameter plastic bowl.
EYE/FACE WASH VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Valve is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
| Item | Combination Safety Shower Eyewash Stations |
| Sprayhead | Eyewash |
| Shower Mounting | Floor Mount |
| Eyewash Bowl Material | Plastic |
| Operation | Push Handle |
| Shower Operation | Pull Down Arm |
| Shower Head Material | Plastic |
