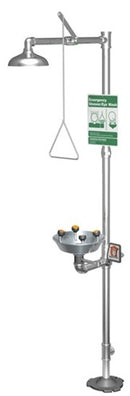

APPLICATION: Combination WideArea eye/face wash and shower safety station. Unit is constructed of polished chrome plated brass pipe, fittings and components for attractive appearance and superior durability. Four GS-Plus spray- type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.
SHOWER HEAD: 8" diameter polished chrome plated cast brass.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Four GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYE/FACE WASH BOWL: 11 1/2" diameter stainless steel.
EYE/FACE WASH VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
PIPE AND FITTINGS: Polished chrome plated brass.
SUPPLY: 1 1/4" NPT female top inlet.
WASTE: 1 1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
SHOWER HEAD: 8" diameter polished chrome plated cast brass.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Four GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYE/FACE WASH BOWL: 11 1/2" diameter stainless steel.
EYE/FACE WASH VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
PIPE AND FITTINGS: Polished chrome plated brass.
SUPPLY: 1 1/4" NPT female top inlet.
WASTE: 1 1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
| Item | Combination Safety Shower Eyewash Stations |
| Sprayhead | Eye/Facewash |
| Shower Mounting | Floor Mount |
| Eyewash Bowl Material | Stainless Steel |
| Operation | Push Handle |
| Shower Operation | Pull Down Arm |
| Shower Head Material | Stainless Steel |
