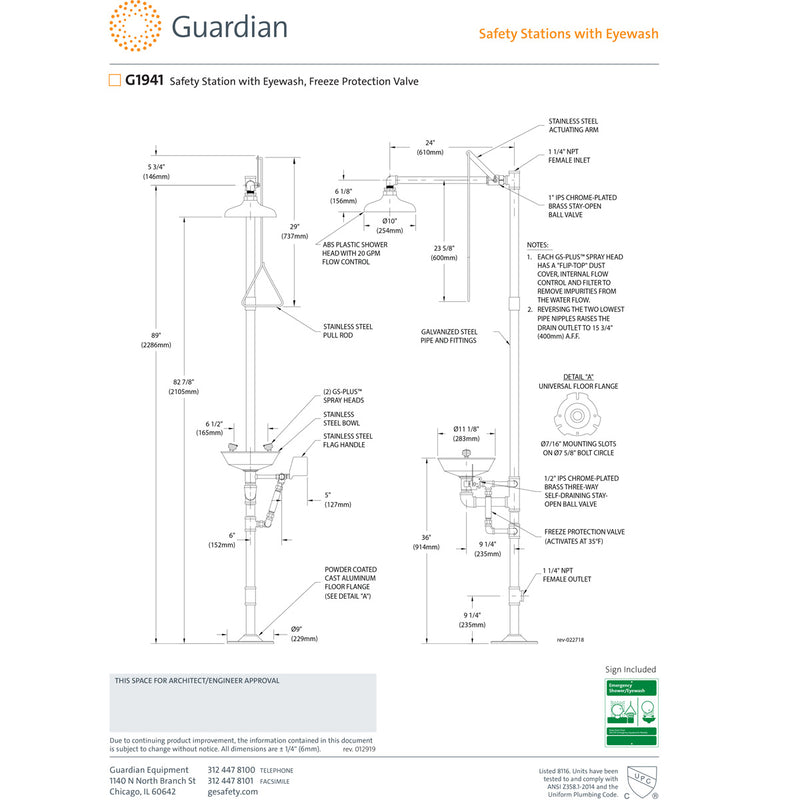

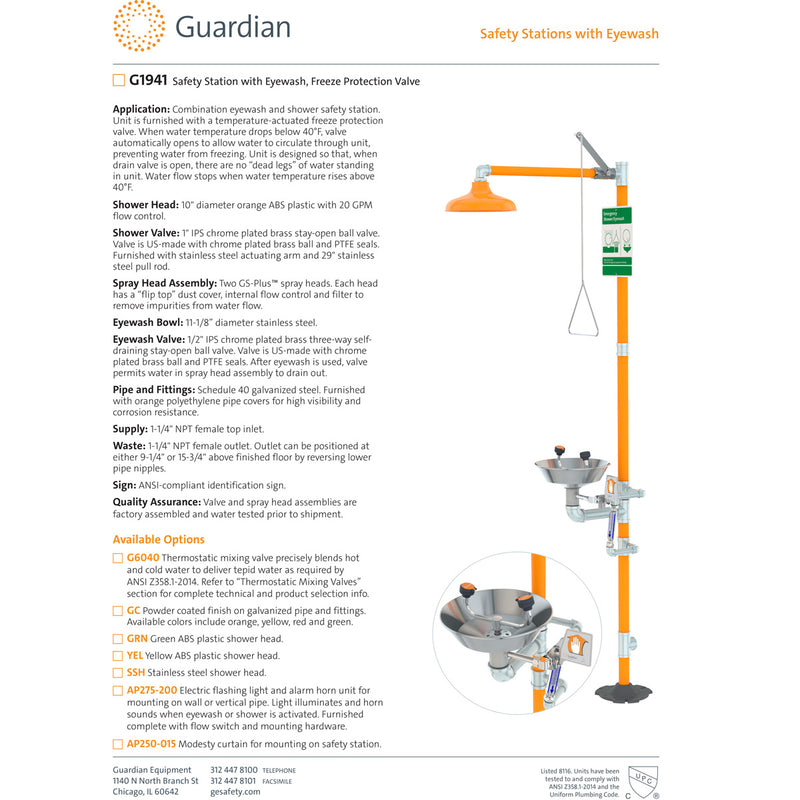

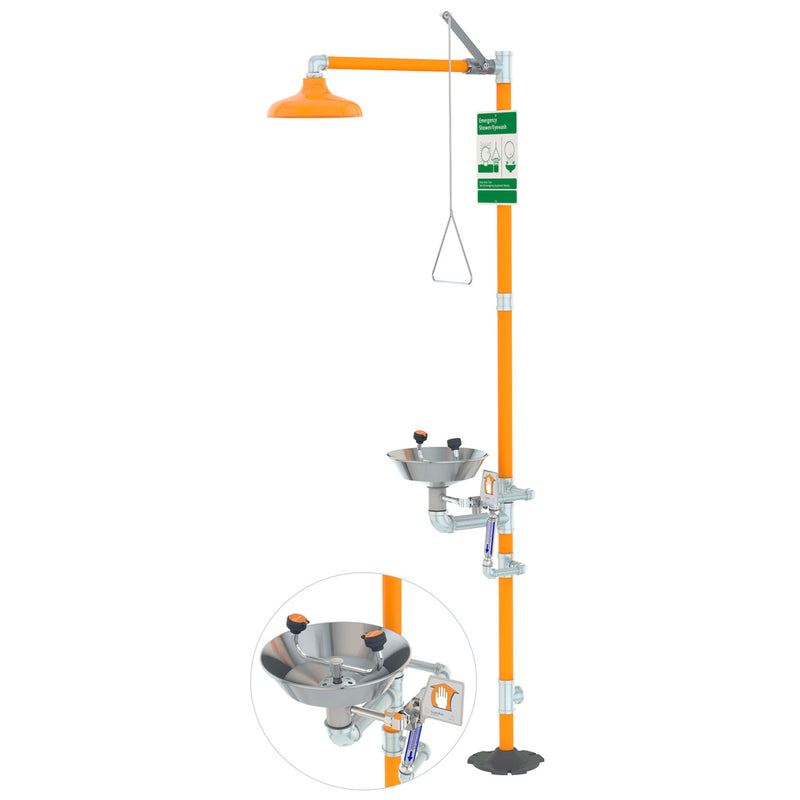

APPLICATION: Combination eyewash and shower safety station. Unit is furnished with a temperature-actuated freeze protection valve. When water temperature drops below 40°F, valve automatically opens to allow water to circulate through unit, preventing water from freezing. Unit is designed so that, when drain valve is open, there are no "dead legs" of water standing in unit. Water flow stops when water temperature rises above 40°F.
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water.
EYEWASH BOWL: 11 1/2" stainless steel.
EYEWASH VALVE: 1/2" IPS chrome plated brass three-way self-draining stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. After eyewash is used, valve permits water in spray head assembly to drain out.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top inlet.
WASTE: 1 1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water.
EYEWASH BOWL: 11 1/2" stainless steel.
EYEWASH VALVE: 1/2" IPS chrome plated brass three-way self-draining stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. After eyewash is used, valve permits water in spray head assembly to drain out.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top inlet.
WASTE: 1 1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
Item | Combination Safety Shower Eyewash Stations |
Sprayhead | Eyewash |
Shower Mounting | Floor Mount |
Eyewash Bowl Material | Stainless Steel |
Operation | Push Handle |
Shower Operation | Pull Down Arm |
Shower Head Material | Plastic |
