Availability : Usually Ships in 12-15 Business Days

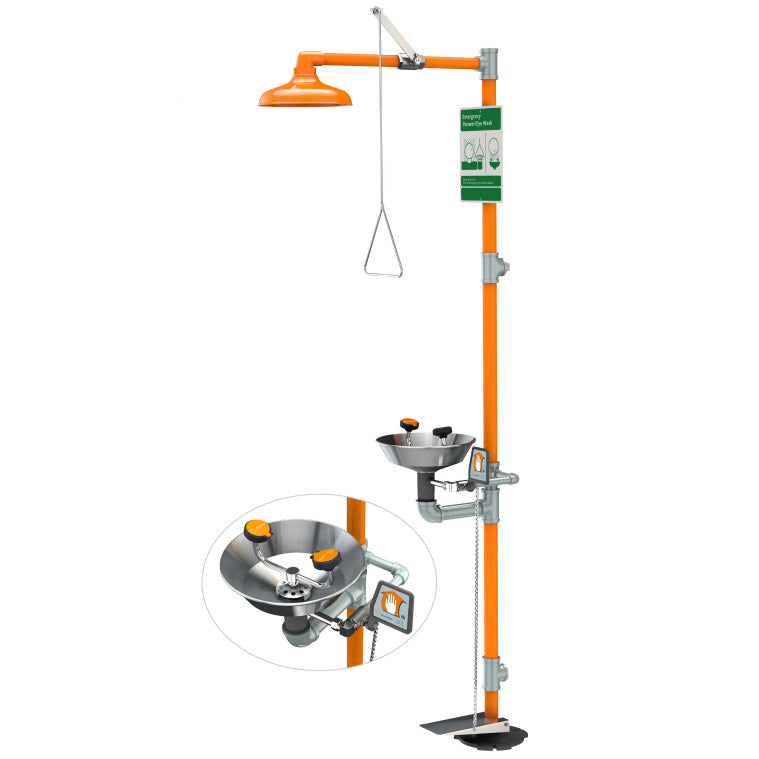

Safety station combines eye/face wash and shower from a single water outlet. Stay-open ball valves. 10" safety orange ABS plastic shower head delivers 30 GPM at 30 PSI. Spray pattern is 20" in diameter at 60" above floor. Stainless steel pull rod is easily located and grasped in an emergency. 12" Stainless steel bowl acts like a sink to drain water away. Eye/face wash is activated by epoxy coated aluminum flag handle or convenient foot treadle. Unit comes with orange ABS pipe covering for high visibility. Unit meets ANSI Z358.1 standard as primary eye/face wash and emergency shower. Complete with ANSI compliant identification sign.

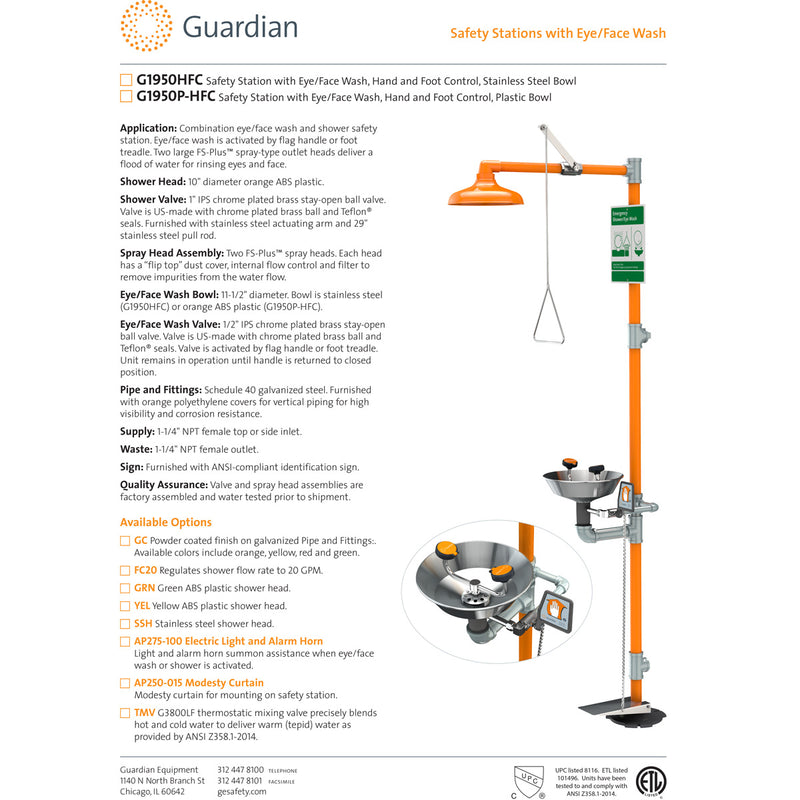

APPLICATION: Combination eye/face wash and shower safety station. Eye/face wash is activated by flag handle or foot treadle. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.

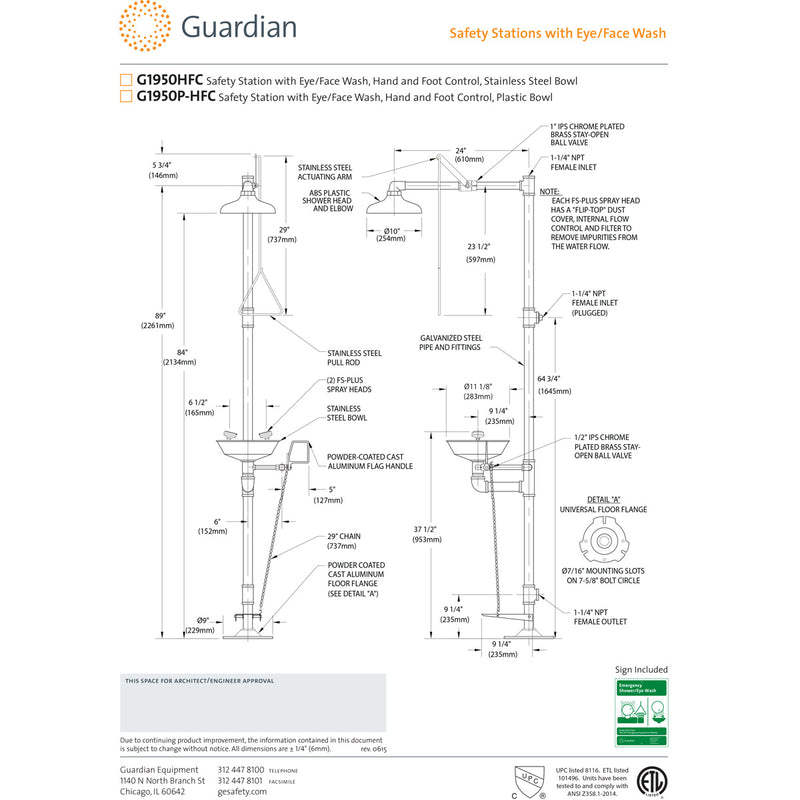

SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYE/FACE WASH BOWL: 11 1/2" diameter stainless steel.
EYE/FACE WASH VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Valve is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment. br>
APPLICATION: Combination eye/face wash and shower safety station. Eye/face wash is activated by flag handle or foot treadle. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYE/FACE WASH BOWL: 11 1/2" diameter stainless steel.
EYE/FACE WASH VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Valve is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment. br>
Item | Combination Safety Shower Eyewash Stations |
Sprayhead | Eye/Facewash |
Shower Mounting | Floor Mount |
Eyewash Bowl Material | Stainless Steel |
Operation | Push Handle/Foot |
Shower Operation | Pull Down Arm |
Shower Head Material | Plastic |
