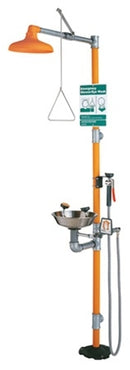

APPLICATION: Combination eye/face wash and shower safety station. Furnished with auxiliary drench hose for rinsing user's eyes, face or body. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYE/FACE WASH BOWL: 11 1/2" diameter stainless steel.
EYE/FACE WASH VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
DRENCH HOSE UNIT: Auxiliary hand-held drench hose for rinsing eyes, face or body. Unit has single FS-Plus spray type outlet head, self-closing valve with squeeze handle, 8 ft. reinforced PVC hose and wall hook.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment. br>
|Eyewash Bowl Material||Stainless Steel|
|Item||Combination Safety Shower Eyewash Stations|
|Shower Head Material||Plastic|
|Shower Mounting||Floor Mount|
|Shower Operation||Pull Down Arm|
