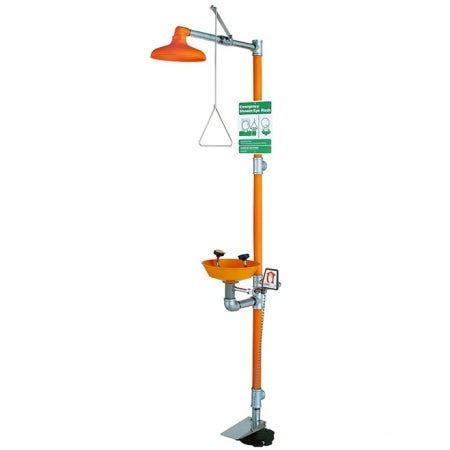

Safety station combines eye/face wash and shower from a single water outlet. Stay-open ball valves. 10" safety orange ABS plastic shower head delivers 30 GPM at 30 PSI. Spray pattern is 20" in diameter at 60" above floor. Stainless steel pull rod is easily located and grasped in an emergency. Orange ABS plastic bowl acts like a sink to drain water away. Unit comes with orange ABS pipe covering for high visibility. Unit meets ANSI Z358.1 standard as primary eye/face wash and emergency shower. Complete with ANSI compliant identification sign.
APPLICATION: Combination eye/face wash and shower safety station. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
HAND & FOOT CONTROL: Hand or Foot control activation helps facilitate activation in an emergency.
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water.
EYE/FACE WASH BOWL: 11 1/2" ABS plastic.
EYE/FACE WASH VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
APPLICATION: Combination eye/face wash and shower safety station. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
HAND & FOOT CONTROL: Hand or Foot control activation helps facilitate activation in an emergency.
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water.
EYE/FACE WASH BOWL: 11 1/2" ABS plastic.
EYE/FACE WASH VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
| Item | Combination Safety Shower Eyewash Stations |
| Sprayhead | Eye/Facewash |
| Shower Mounting | Floor Mount |
| Eyewash Bowl Material | Plastic |
| Operation | Push Handle/Foot |
| Shower Operation | Pull Down Arm |
| Shower Head Material | Plastic |
