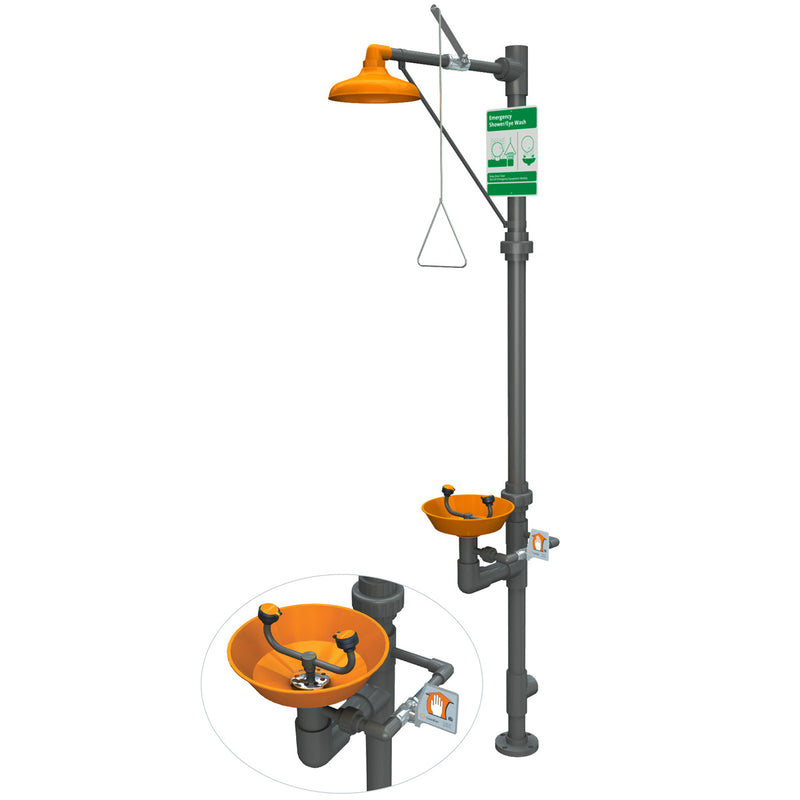

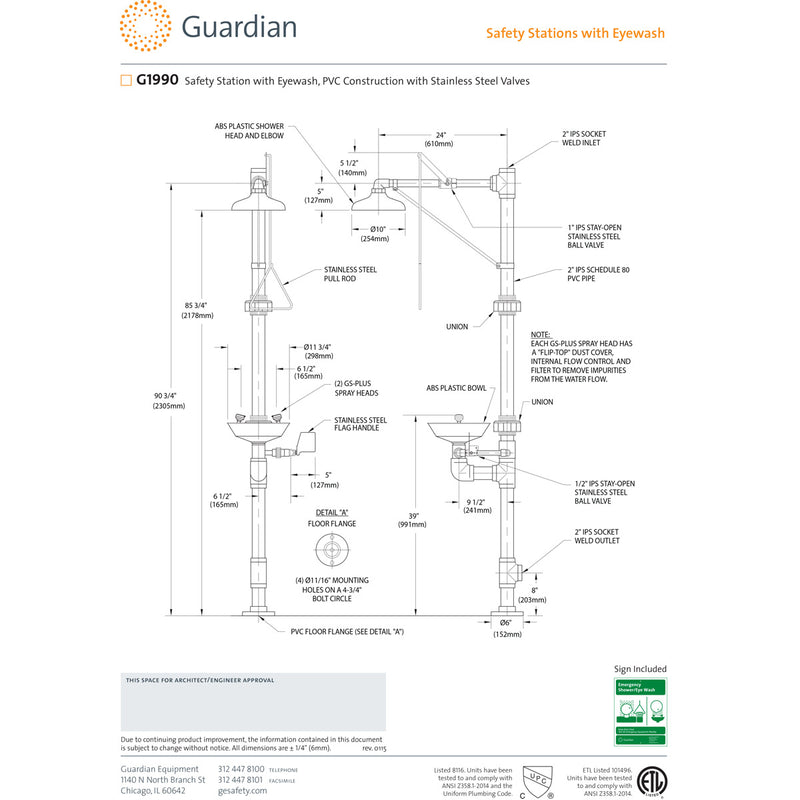

APPLICATION: All-PVC combination eyewash and shower safety station. Unit is constructed entirely of PVC and PVC-coated components for superior corrosion resistance. Ideal for industrial environments where harsh acids or caustics are present. Two GS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes.
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water.
EYEWASH BOWL: 11 1/2" orange ABS plastic.
EYEWASH VALVE: 1/2" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals.
PIPE AND FITTINGS: Schedule 80 PVC.
SUPPLY: 2" IPS socket weld top female inlet.
WASTE: 2" IPS socket weld female outlet.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water.
EYEWASH BOWL: 11 1/2" orange ABS plastic.
EYEWASH VALVE: 1/2" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals.
PIPE AND FITTINGS: Schedule 80 PVC.
SUPPLY: 2" IPS socket weld top female inlet.
WASTE: 2" IPS socket weld female outlet.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
| Item | Combination Safety Shower Eyewash Stations |
| Sprayhead | Eyewash |
| Shower Mounting | Floor Mount |
| Eyewash Bowl Material | Plastic |
| Operation | Push Handle |
| Shower Operation | Pull Down Arm |
| Shower Head Material | Plastic |
