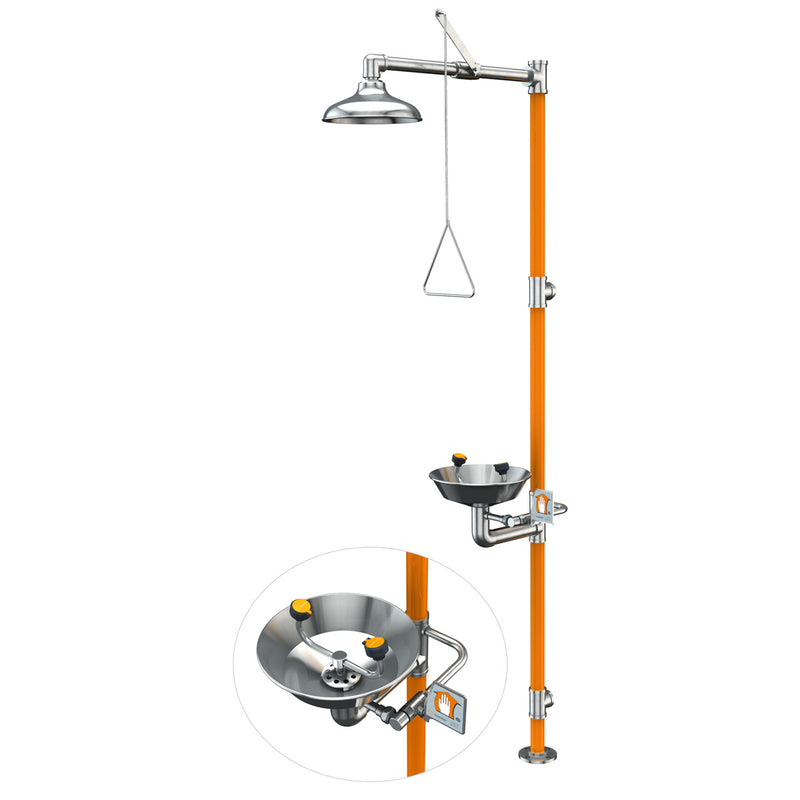

Guardian G1991 Safety Shower with Eyewash Station, All-Stainless Steel Construction
Availability : Usually Ships in 10 Business Days
✅ All-stainless steel construction, ensuring durability in corrosive environments.
✅ Combines an eyewash station with a safety shower, optimizing space.
✅ Features a 10" stainless steel shower head for effective coverage.
✅ Two GS-Plus spray heads in the eyewash station for thorough eye rinsing.
For use in highly corrosive areas. All stainless steel safety station combines eye wash and shower from a single water outlet. Type 304 stainless steel pipe and fittings. Stay-open stainless steel ball valves. 10" stainless steel shower head delivers 30 GPM at 30 PSI. Spray pattern is 20" in diameter at 60" above floor. Stainless steel pull rod is easily located and grasped in an emergency. 12" stainless steel bowl acts like a sink to drain water away. Eye wash is activated by stainless steel flag handle. Unit meets ANSI Z358.1 standard as primary eye wash and emergency shower. Complete with ANSI compliant identification sign.

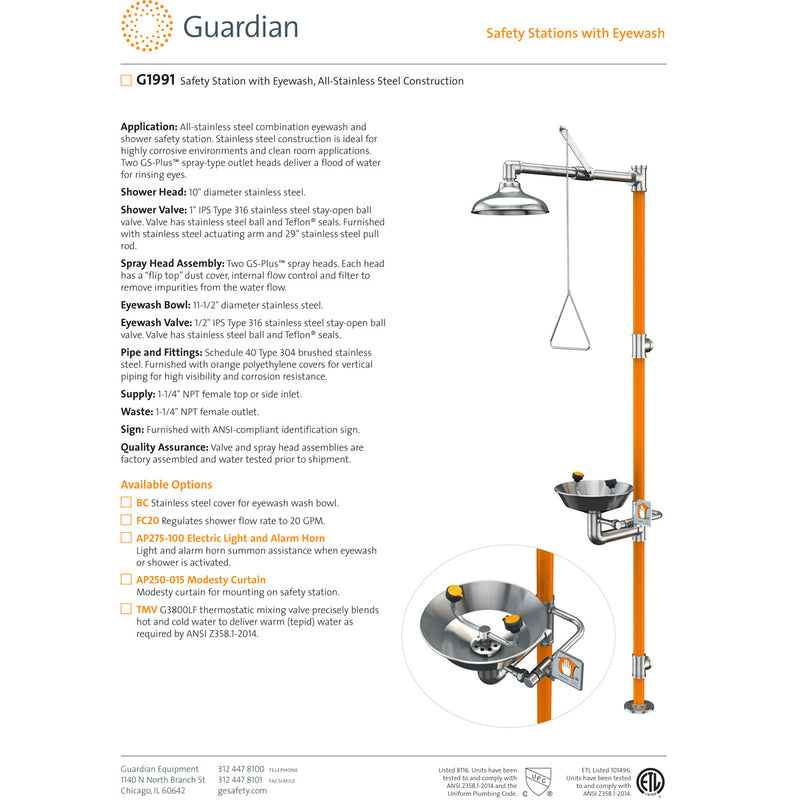

APPLICATION: All-stainless steel combination eyewash and shower safety station. Stainless steel construction is ideal for highly corrosive environments and clean room applications. Two GS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes.
SHOWER HEAD: 10" diameter stainless steel.
SHOWER VALVE: 1" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYEWASH BOWL: 11 1/2" diameter stainless steel.
EYEWASH VALVE: 1/2" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals.
PIPE AND FITTINGS: Schedule 40 Type 304 brushed stainless steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
SHOWER HEAD: 10" diameter stainless steel.
SHOWER VALVE: 1" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYEWASH BOWL: 11 1/2" diameter stainless steel.
EYEWASH VALVE: 1/2" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals.
PIPE AND FITTINGS: Schedule 40 Type 304 brushed stainless steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
| Item | Combination Safety Shower Eyewash Station |
| Sprayhead | Eyewash (2 Covered Heads) |
| Shower Mounting | Floor Mount |
| Eyewash Bowl Material | Stainless Steel (Uncovered) |
| Operation | Push Handle (Eyewash) |
| Shower Operation | Pull Down Arm |
| Shower Head Material | Stainless Steel |
| Spray Head Material | Stainless Steel |
| Height | 95 3/4 in |
| Width | 16 in |
| Depth | 24 in |
| Bowl Diameter | 11 1/8 in |
| Head Dia. | 1-1/2 in |
| Shower Handle Length | 29 in |
| Inlet Pipe Size | 1-1/4 in NPT Female |
| Outlet Pipe Size | 1-1/4 in NPT Female |
| Inlet Connection Location | Top |
| Inlet Pipe Thread Type | NPT |
| Outlet Pipe Thread Type | NPT |
| Fitting Material | Stainless Steel |
| Pipe Material | Stainless Steel |
| Valve Material | Stainless Steel |
| Eyewash Handle Material | Stainless Steel |
| Shower Handle Material | Stainless Steel |
| Activation Type | Push Plate / Pull Rod |
| Coverage | Eyes, Full Body (Shower) |
| Color | Orange |
| Mount Type | Floor |
| Installation Type | Plumbed |
| Assembly | Assembled |
| Includes | Emergency Shower/Eyewash Sign, Inspection Tag, Showerhead Shroud |
| Standards | ANSI Z358.1-2014 |
| ANSI Compliant | Yes (Supplemental Only) |
| Maximum Flow Rate | 20 gpm |
| Environment | General Purpose |
