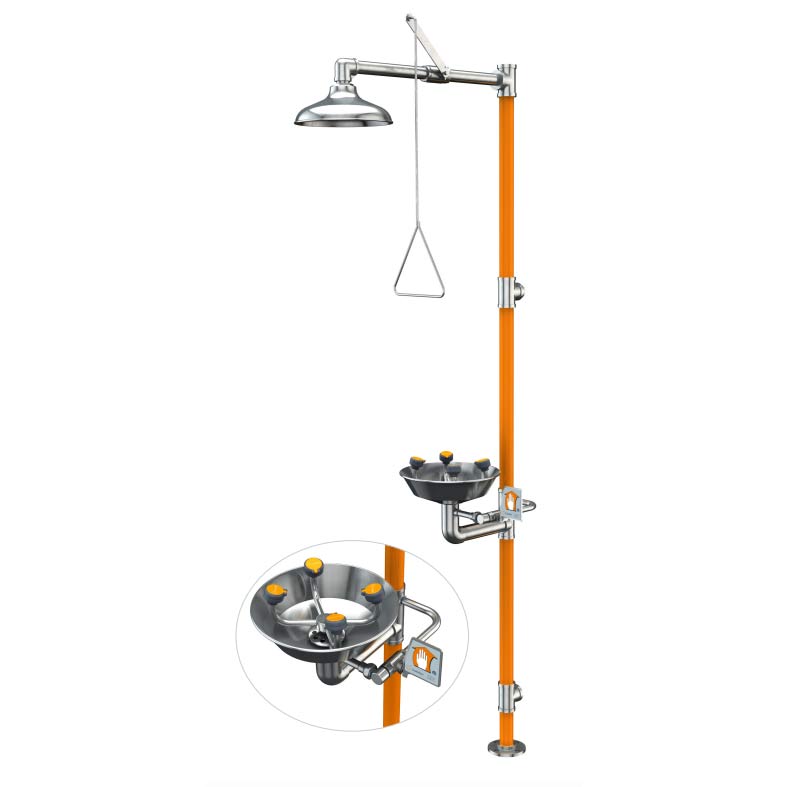

For use in highly corrosive areas. All stainless steel safety station combines eye/face wash and shower from a single water outlet. Type 304 stainless steel pipe and fittings. Stay-open stainless steel ball valves. 10" stainless steel shower head delivers 30 GPM at 30 PSI. Spray pattern is 20" in diameter at 60" above floor. Stainless steel pull rod is easily located and grasped in an emergency. 12" stainless steel bowl acts like a sink to drain water away. Eye/face wash is activated by 1/2" stainless steel stay-open ball valve with stainless steel flag handle. Unit meets ANSI Z358.1 standard as primary eye/face wash and emergency shower. Complete with ANSI compliant identification sign.

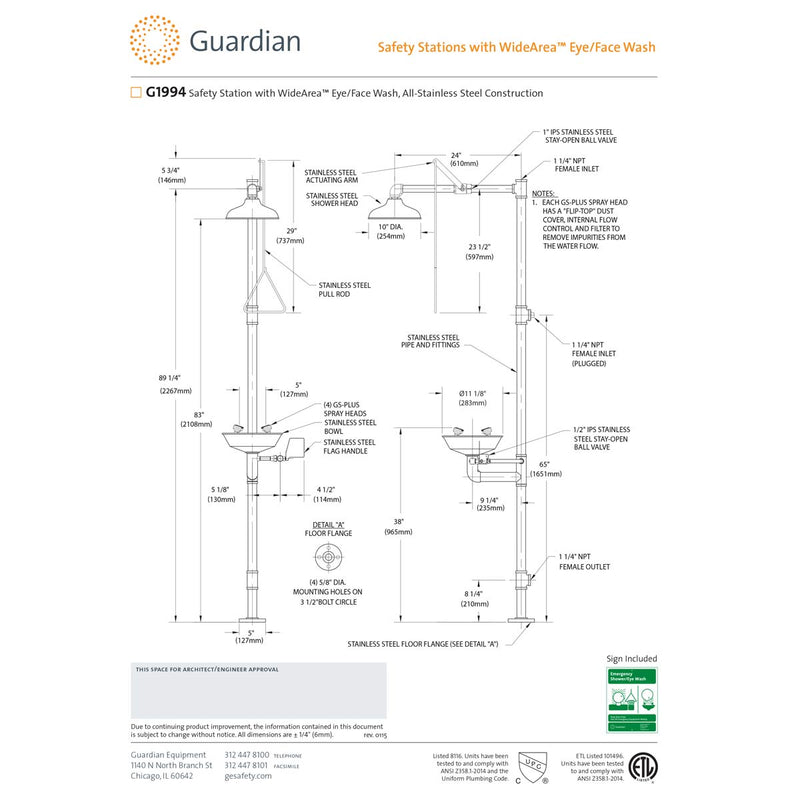

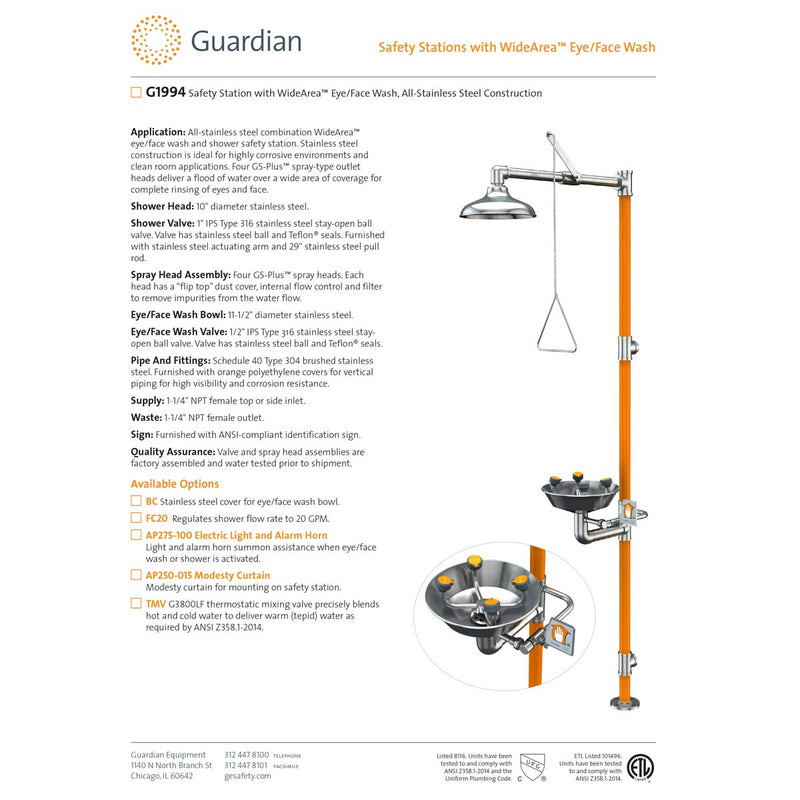

APPLICATION: All-stainless steel combination WideArea eye/face wash and shower safety station. Stainless steel construction is ideal for highly corrosive environments and clean room applications. Four GS-Plus spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.
SHOWER HEAD: 10" diameter stainless steel.
SHOWER VALVE: 1" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Four GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYE/FACE WASH BOWL: 11 1/2" diameter stainless steel.
EYE/FACE WASH VALVE: 1/2" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals.
PIPE AND FITTINGS: Schedule 40 Type 304 brushed stainless steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment. br>
APPLICATION: All-stainless steel combination WideArea eye/face wash and shower safety station. Stainless steel construction is ideal for highly corrosive environments and clean room applications. Four GS-Plus spray-type outlet heads deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.
SHOWER HEAD: 10" diameter stainless steel.
SHOWER VALVE: 1" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Four GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYE/FACE WASH BOWL: 11 1/2" diameter stainless steel.
EYE/FACE WASH VALVE: 1/2" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals.
PIPE AND FITTINGS: Schedule 40 Type 304 brushed stainless steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment. br>
| Item | Combination Safety Shower Eyewash Stations |
| Sprayhead | Eye/Facewash |
| Shower Mounting | Floor Mount |
| Eyewash Bowl Material | Stainless Steel |
| Operation | Push Handle |
| Shower Operation | Pull Down Arm |
| Shower Head Material | Stainless Steel |
