Availability : Usually Ships in 12-15 Business Days
- Stainless steel construction for durability
- Two FS-Plus spray-type outlet heads
- 10" diameter stainless steel shower head
- 1" IPS Type 316 stainless steel stay-open valve
- 11 1/2" diameter stainless steel eye/face wash bowl
- High visibility with orange polyethylene pipe covers
- ANSI-compliant identification sign included
- Factory tested quality assurance

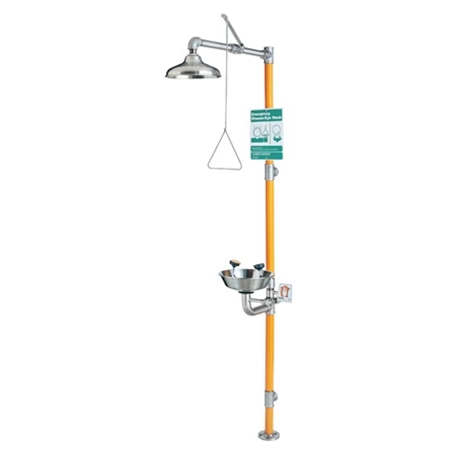

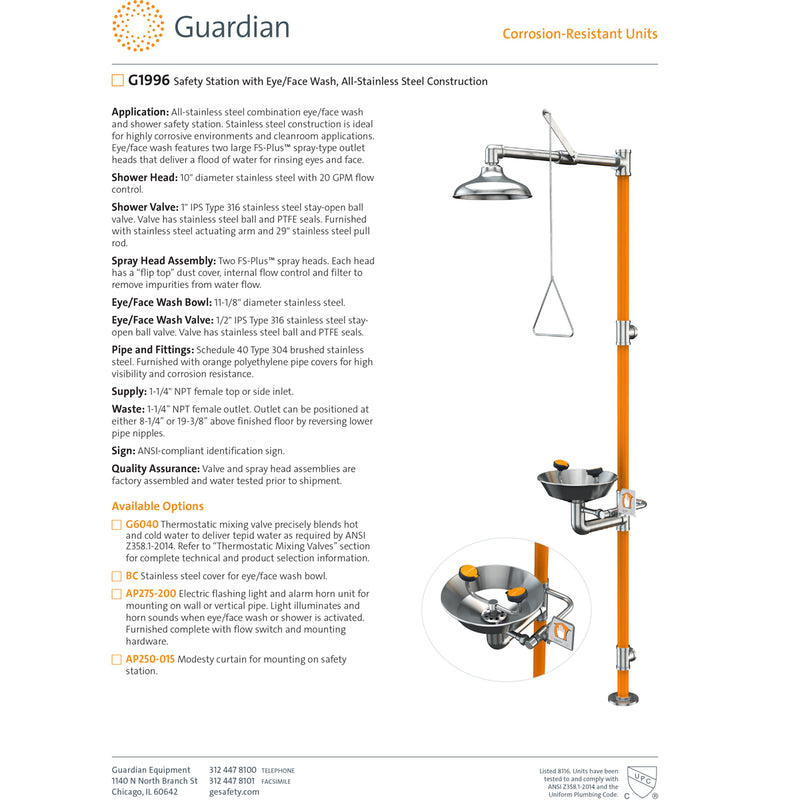

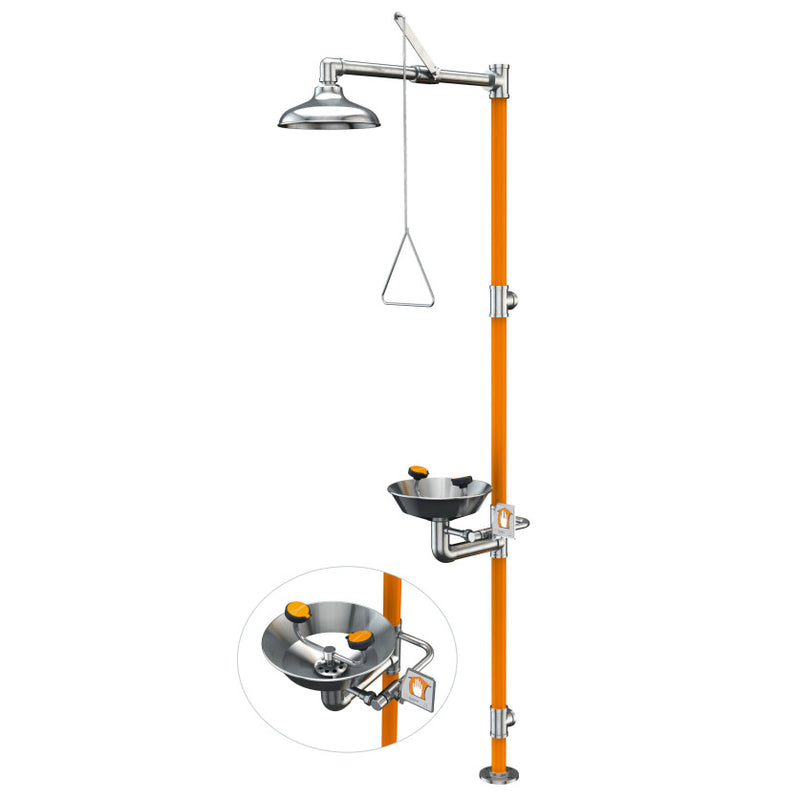

APPLICATION: All-stainless steel combination eye/face wash and shower safety station. Stainless steel construction is ideal for highly corrosive environments and clean room applications. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.

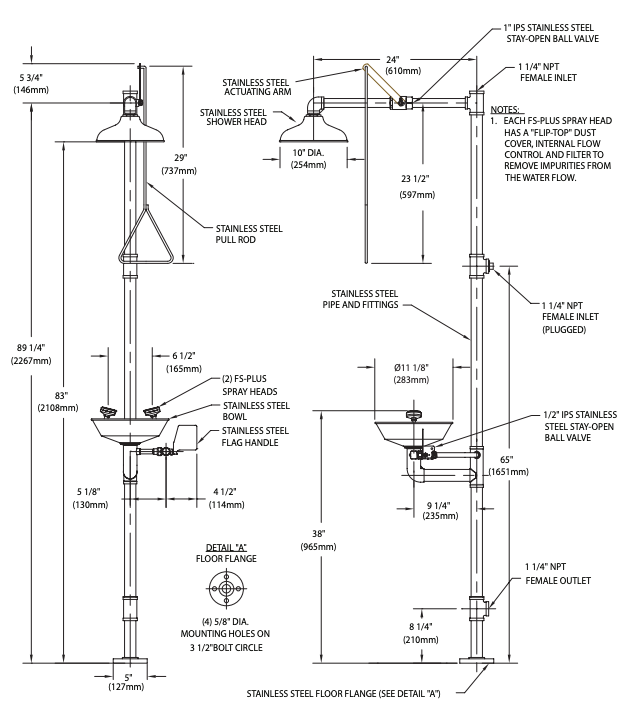

SHOWER HEAD: 10" diameter stainless steel.
SHOWER VALVE: 1" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
EYE/FACE WASH BOWL: 11 1/2" diameter stainless steel.
EYE/FACE WASH VALVE: 1/2" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals.
PIPE AND FITTINGS: Schedule 40 Type 304 brushed stainless steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
Item | Combination Safety Shower Eyewash Stations |
Sprayhead | Eye/Facewash |
Shower Mounting | Floor Mount |
Eyewash Bowl Material | Stainless Steel |
Operation | Push Handle |
Shower Operation | Pull Down Arm |
Shower Head Material | Stainless Steel |
Width | 16" |
Height | 96" |
Head Dia. | 2-1/4" |
Bowl Dia. | 11-1/2" |
Shower Handle Length | 29" |
