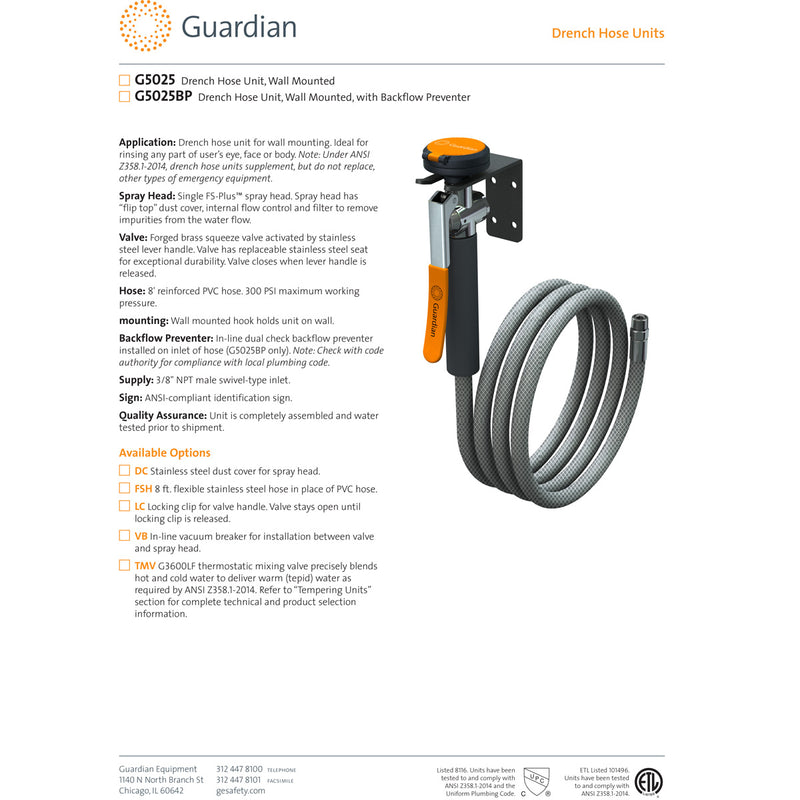

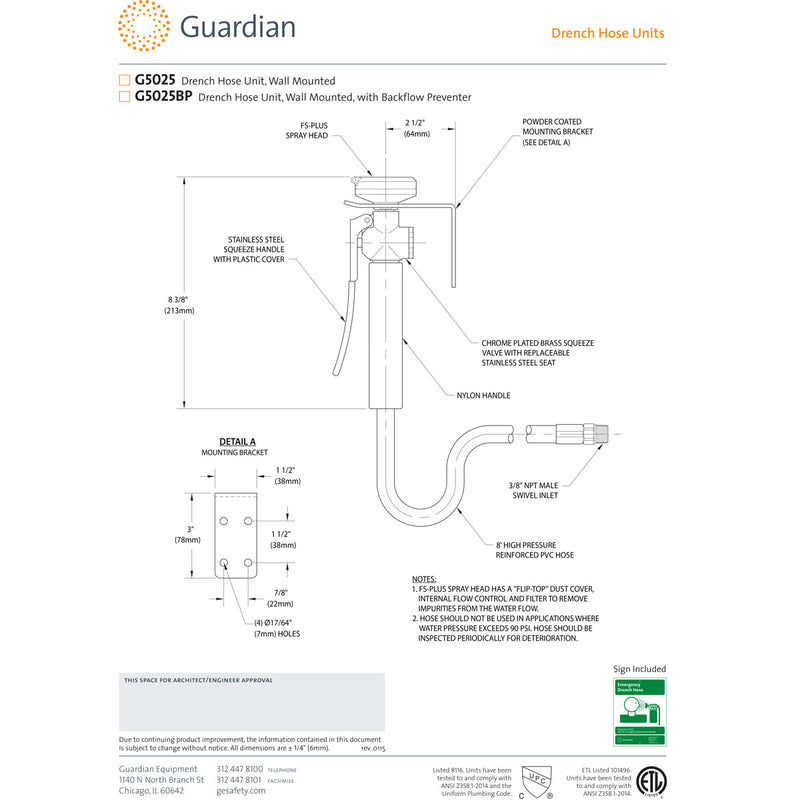

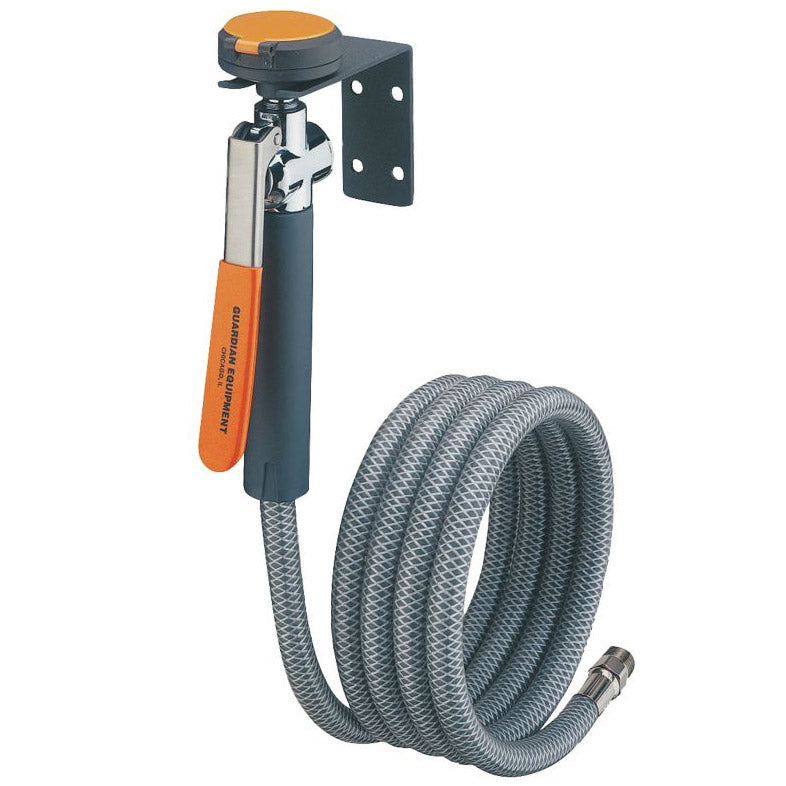

Wall mounted drench hose features single Fine Spray outlet head (3.2 GPM), which regulates flow for soft, even spray. Filter removes debris from water. Chrome plated squeeze valve is activated by stainless steel handle. All wearing components are accessible for ease of service. 8' reinforced PVC hose. 300 PSI hose rating. Fully factory assembled and water tested. Hand held drench hoses do not meet ANSI Z358.1 standard as primary eye wash.
APPLICATION: Drench hose unit for wall mounting. Ideal for rinsing any part of user's eye, face or body. Note: Under ANSI Z358.1 - 2004, drench hose units supplement, but do not replace, other types of emergency equipment.

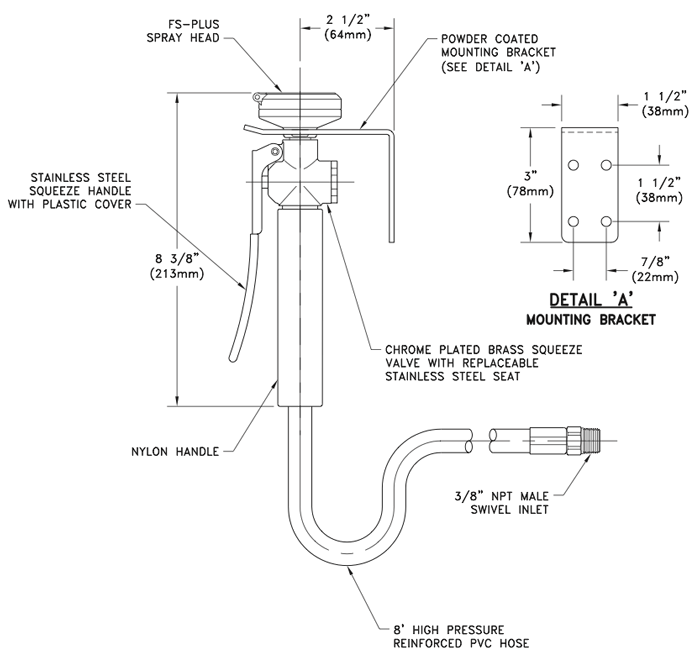

SPRAY HEAD: Single FS-Plus spray head. Spray head has "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Valve closes when lever handle is released.
HOSE: 8' reinforced PVC hose. 300 PSI maximum working pressure.
MOUNTING: Wall mounted hook holds unit on wall.
SUPPLY: 3/8" NPT male swivel-type inlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment.
APPLICATION: Drench hose unit for wall mounting. Ideal for rinsing any part of user's eye, face or body. Note: Under ANSI Z358.1 - 2004, drench hose units supplement, but do not replace, other types of emergency equipment.
SPRAY HEAD: Single FS-Plus spray head. Spray head has "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Valve closes when lever handle is released.
HOSE: 8' reinforced PVC hose. 300 PSI maximum working pressure.
MOUNTING: Wall mounted hook holds unit on wall.
SUPPLY: 3/8" NPT male swivel-type inlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment.
Item | Single Head Drench Hose |
Eye Wash and Shower Mounting | Wall |
Hose Length | 8 ft |
Drench Hose Valve Type | Self-Closing |
Flow Rate | 3.2 gpm |
Covers | Flip Top |
Includes | Identification Sign and Inspection Tag, Wall Bracket |
ANSI Compliant | Yes |
Hose Material | Reinforced PVC |
Head Dia. | 2 1/4 in |
Inlet Size | 3/8 in NPT |
Standards | ANSI Z358.1-2014 |
