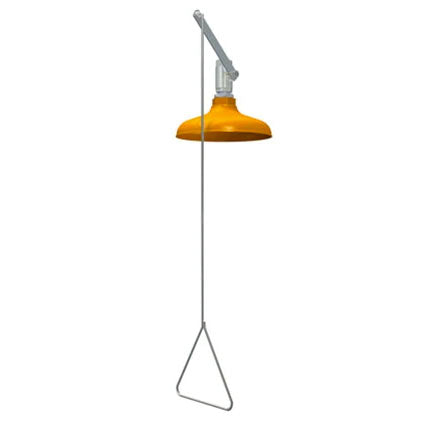

APPLICATION: Handicapped accessible emergency shower for vertical mounting. Unit should be installed so that shower head is at least 82" above floor and 32" from wall or nearest obstruction.
ADA COMPLIANCE: When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach and distance from obstructions).
SHOWER HEAD: 10" diameter orange ABS plastic.
VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 59 1/2" stainless steel pull rod.
SUPPLY: 1" NPT female inlet.
SIGN: ANSI-compliant identification sign.
|Item||Barrier Free Eyewash|
|Shower Mounting||Vertical Mount|
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
