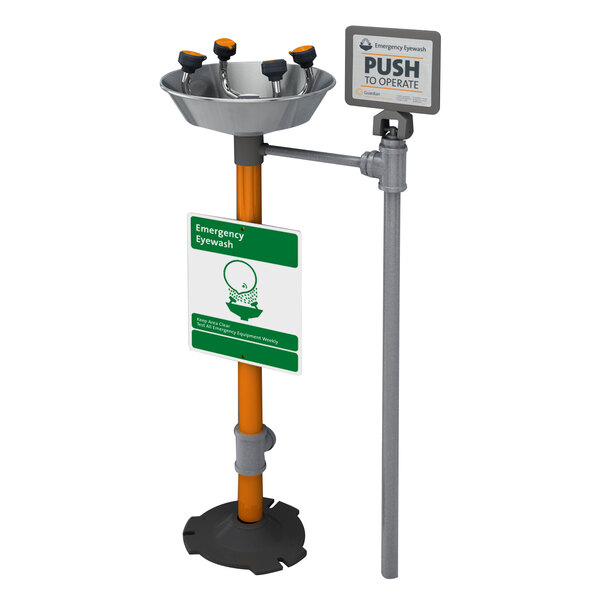

Guardian GFR1704 Freeze-Resistant Pedestal, Eye/Face Wash
Availability : Usually Ships in 10 Business Days
Guardian GFR1704 Freeze-Resistant Ped Eye/Face Wash
Application: Freeze-resistant WideArea™ eye/face for pedestal mounting. Freeze-resistant valve and supply line are buried below frost line to protect against freezing. Unit is designed to drain completely after use, so that no standing water remains in unit and possibility of freeze-up is eliminated. Since unit is intended for use in cold weather conditions, consideration should be given to supplying unit with tempered water in accordance with ANSI Z358.1-2014. See Tempering Valves section for more information.
Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a “flip top” dust cover and internal flow control.
Valve: 3/4" IPS freeze-resistant valve with push plate. Valve body and supply line are buried below frost line to prevent freezing. Valve has 1/8" IPS bleed outlet to permit water standing in unit to drain out after use. Specify bury depth of valve when ordering.
Bowl: 11-1/8" diameter stainless steel.
Pipe and fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
Supply: 3/4" NPT female inlet.
Waste: 1-1/4" NPT female outlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
