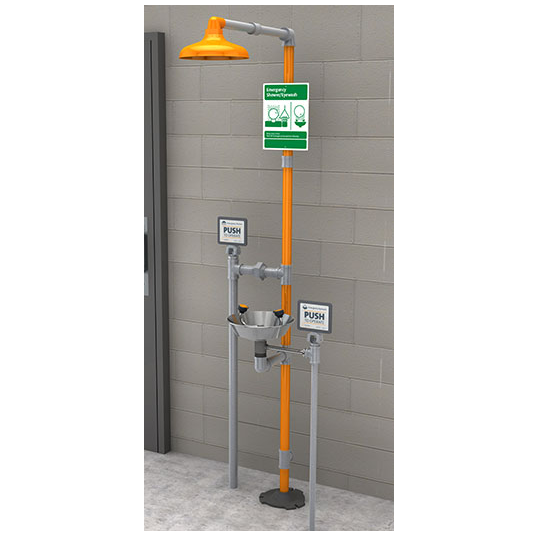

Guardian GFR1902SSH w/ 24" Bury Depth Valve
Availability : Usually Ships in 10 Business Days

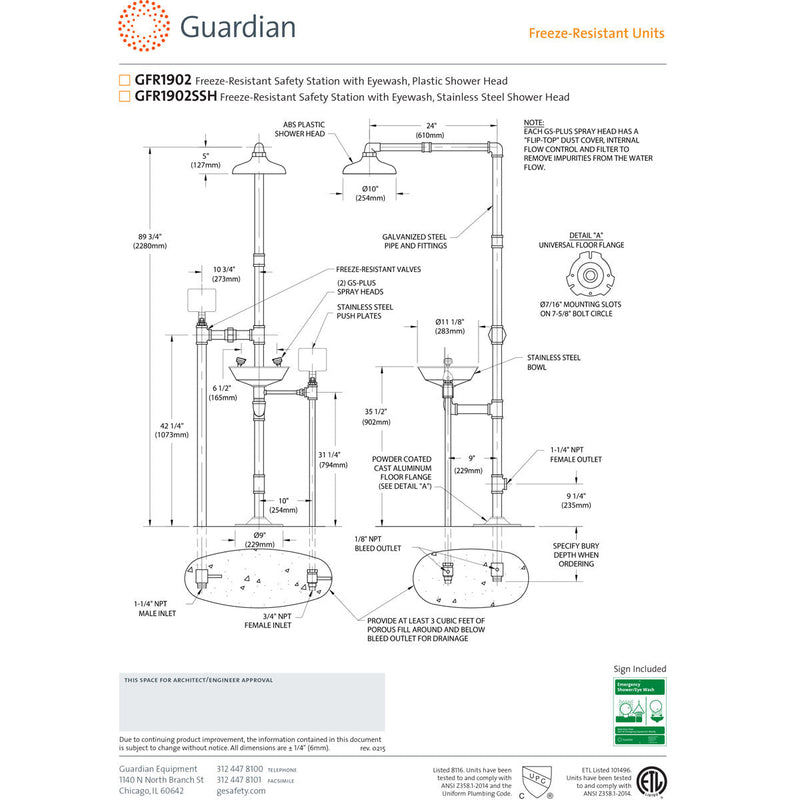

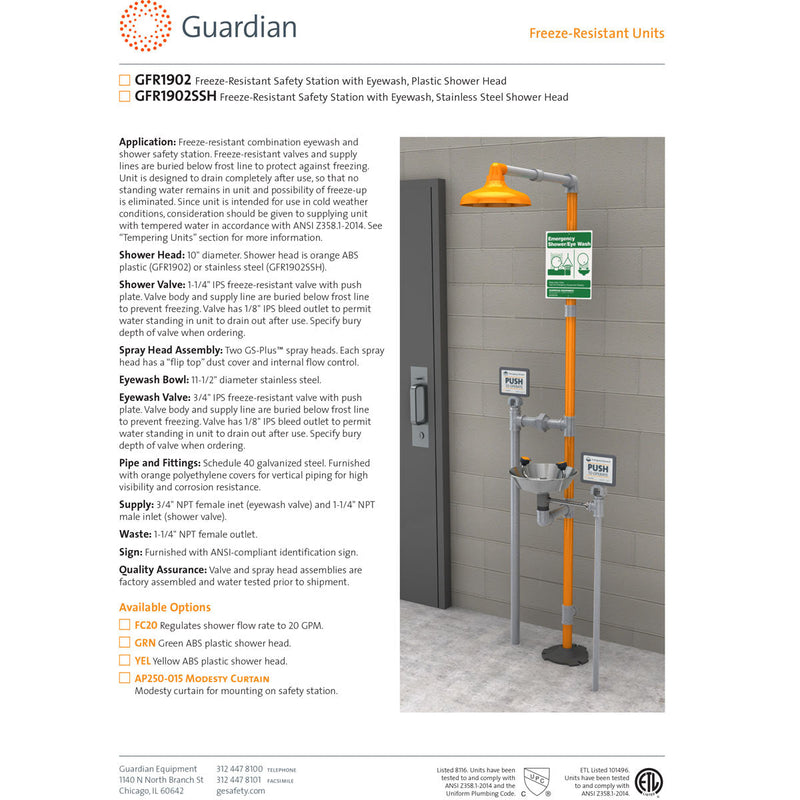

GFR1902SSH Freeze-Resistant Safety Station with Eyewash
✅ Freeze-Resistant Combination Safety Shower & Eyewash With Below-Frost-Line Valves
✅ 10″ Stainless Steel Shower Head & 11-1/2″ Stainless Steel Eyewash Bowl
✅ Dual GS-Plus™ Spray Heads With Flip-Top Dust Covers, Flow Controls & Filters
✅ 1-1/4″ IPS Shower Valve & 3/4″ IPS Eyewash Valve, Both With Push Plates & Drain Outlets
✅ High-Visibility Orange Polyethylene Pipe Covers On Galvanized Steel Construction
✅ Includes ANSI-Compliant Sign & Inspection Tag — Fully Factory Assembled & Tested
Application:
Freeze-resistant combination eyewash and shower safety station. Freeze-resistant valves and supply lines are buried below frost line to protect against freezing. Unit is designed to drain completely after use, so that no standing water remains in unit and possibility of freeze-up is eliminated. Since unit is intended for use in cold weather conditions, consideration should be given to supplying unit with tempered water in accordance with ANSI Z358.1-2014. See “Tempering Valves” section for more information.
Shower Head:
10" diameter with 20 GPM flow control. Shower head is orange ABS plastic (GFR1902) or stainless steel (GFR1902SSH).
Shower Valve:
1-1/4" IPS freeze-resistant valve with push plate. Valve body and supply line are buried below frost line to prevent freezing. Valve has 1/8" IPS bleed outlet to permit water standing in unit to drain out after use. Note: Specify bury depth of valve when ordering.
Spray Head Assembly:
Two GS-Plus™ spray heads. Each spray head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Eyewash Bowl:
11-1/8" diameter stainless steel.
Eyewash Valve:
3/4" IPS freeze-resistant valve with push plate. Valve body and supply line are buried below frost line to prevent freezing. Valve has 1/8" IPS bleed outlet to permit water standing in unit to drain out after use. Note: Specify bury depth of valve when ordering.
Pipe and Fittings:
Schedule 40 galvanized steel. Furnished with orange polyethylene pipe covers for high visibility and corrosion resistance.
Supply:
3/4" NPT female inlet (eyewash valve) and 1-1/4" NPT male inlet (shower valve).
Waste:
1-1/4" NPT female outlet.
Sign:
ANSI-compliant identification sign.
Quality Assurance:
Valve and spray head assemblies are factory assembled and water tested prior to shipment.
| Item | Freeze-Resistant Safety Station (Shower + Eyewash) |
| Series | GFR1902SSH |
| Type | Freeze-Protected, Plumbed Combination Station |
| Mounting | Floor Mount |
| Operation | Push-Plate Activation (Shower & Eyewash) |
| Shower Head | Stainless Steel (10 in) |
| Shower Valve | 1-1/4″ IPS Freeze-Resistant Push Plate Valve (bleed outlet) |
| Spray Heads | Dual GS-Plus™ with Flip-Top Dust Covers, Flow Control & Filters |
| Eyewash Bowl | 11-1/8″ Stainless Steel |
| Eyewash Valve | 3/4″ IPS Freeze-Resistant Push Plate Valve (bleed outlet) |
| Pipe/Fittings | Schedule 40 Galvanized Steel with Orange Covers |
| Supply Connections | 1-1/4″ NPT Male (Shower), 3/4″ NPT Female (Eyewash) |
| Waste Connection | 1-1/4″ NPT Female |
| Features | Drain Bleed, Freeze Protection, Built-In Visibility Covers |
| Standards | ANSI Z358.1-2014 Compliant |
| Includes | ANSI Sign |
