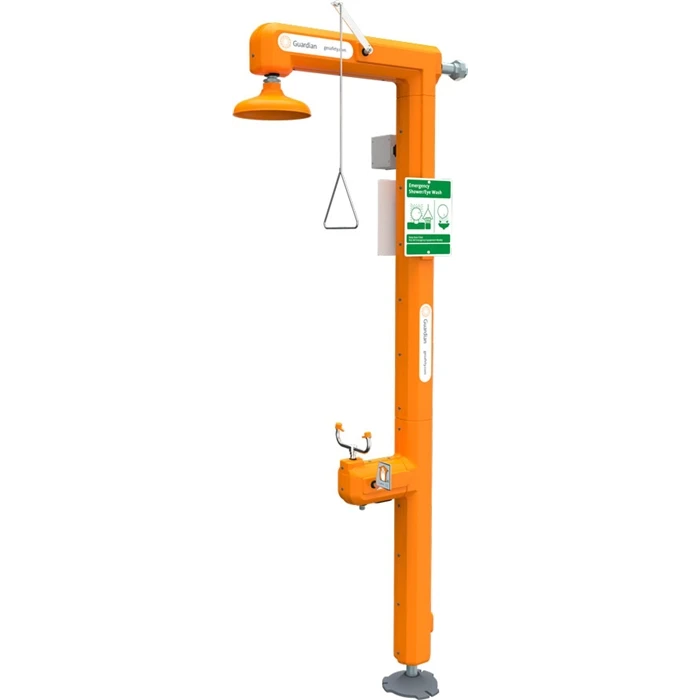

Guardian GFR3100 Heated Safety Station w/ Eyewash, Top Inlet

✅ Freeze-protected to -40°F with heat-traced, insulated piping.

✅ Rated for Class I, Division 2 hazardous locations.

✅ ANSI Z358.1 compliant with 20 GPM shower and freeze-resistant eyewash.


The Guardian GFR3100 Heated Safety Station and Combination Emergency Eyewash featuring a top inlet is specially crafted for areas where heated water is needed. This high quality two-in-one heat-traced safety station provides excellent protection against freezing through self-limiting heat tracing cable wrapped around internal pipe. Guardian's heated combo unit is insulated and jacketed for protection against weather (UV-resistant orange ABS plastic jacket with removable polyethylene foam insulation) - heating is controlled by thermostat that shuts heat off when ambient temperature is over 50°F. Intended for use in areas with cold weather conditions, it is important to note that consideration should be given to supplying unit with tempered water in accordance with ANSI Z358.1-2014.

Application: Electric heat-traced stations prevent freezing even in extreme conditions. Thermostat regulated units are heated by self-limiting heat-tracing cable wrapped around internal pipe. Units are intended for cold weather use down to -40°F. See ‘Thermostatic Mixing Valves’ section to ensure tepid water compliance with ANSI Z358.1-2014.

Heating Cable: Self-regulated with external termination guards. Thermostat activates when internal piping temperature falls below 75°F. FM, UL, and CSA approved for Class I, Division 2, Groups B, C, and D.

Electrical System: Unit is fully wired at factory. Junction box and components rated for Class I, Division 2, Groups B, C, and D. Requires 120 VAC single phase power supply.

Jacket/Insulation: UV-resistant orange ABS plastic with polyethylene foam insulation. Jacket sections are secured with removable stainless steel screws for easy maintenance.

Shower Head: 10" diameter orange ABS plastic with 20 GPM flow control.

Shower Valve: 1" IPS brass stay-open ball valve. US-made with brass ball and PTFE seals. Includes stainless steel actuating arm and 29" stainless steel pull rod.

Spray Head Assembly: Freeze-resistant with float-off dust covers and internal flow control.

Eyewash Valve: 1/2" IPS brass three-way self-draining stayopen ball valve. US-made with brass ball and PTFE seals. Includes 1/2" NPT port to drain water from spray heads after use.

Pipe and Fittings: Schedule 40 galvanized steel.

Supply: 1-1/4" NPT female top inlet.

Sign: ANSI-compliant identification sign.

Quality Assurance: Factory tested prior to shipment. Ships fully assembled and crated.
