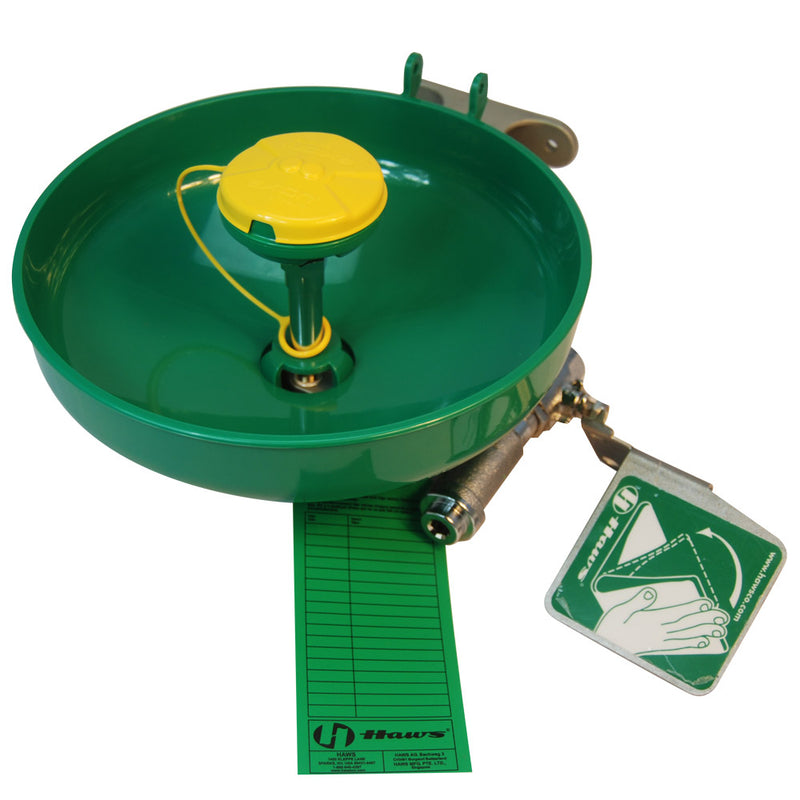

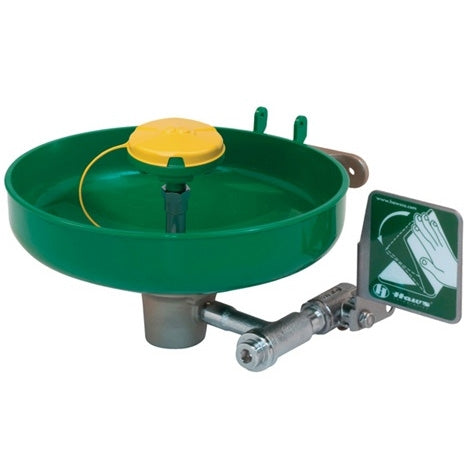

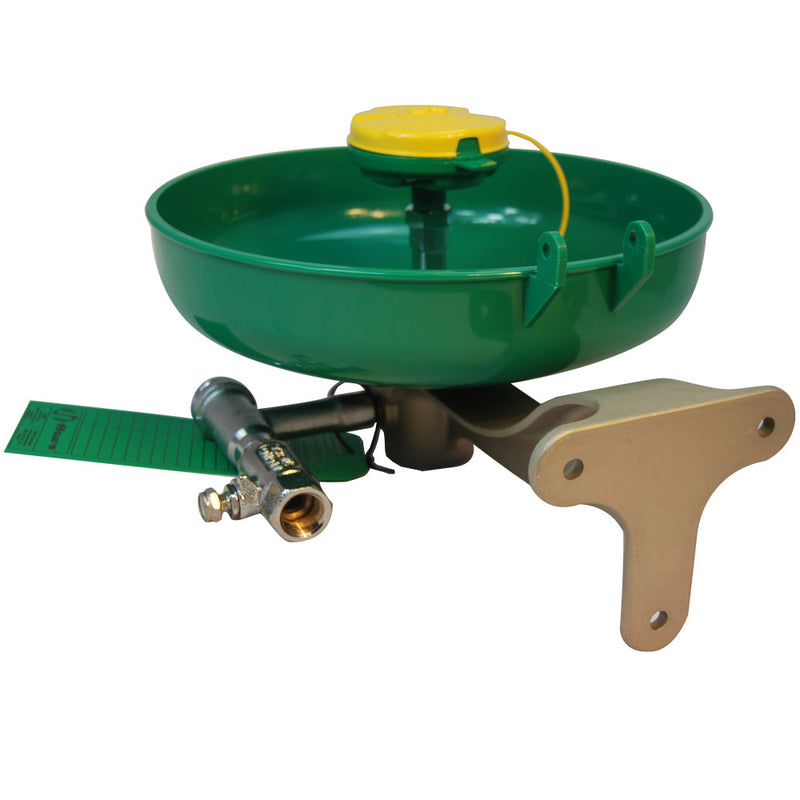

Wall Mounted Eye/ Face Wash Station, Green Plastic Bowl, with AXION MSR Eye/Face Wash Head, Meets ANSI Z358.1-2014 Requirements
Model 7260B-7270B wall mounted eye/face wash shall include a green ABS plastic 11" bowl, an antimicrobially treated AXION MSR eye/face wash head to help protect against the growth of mold and mildew on the treated components, and shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit shall also include cast-aluminum chromate protected wall bracket, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" IPS inlet, and 1-1/4" IPS waste.
Model 7260B-7270B wall mounted eye/face wash shall include a green ABS plastic 11" bowl, an antimicrobially treated AXION MSR eye/face wash head to help protect against the growth of mold and mildew on the treated components, and shall feature inverted directional laminar flow which achieves zero vertical velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit shall also include cast-aluminum chromate protected wall bracket, yellow plastic pop-off dust cover for eyewash head, universal sign, 1/2" IPS inlet, and 1-1/4" IPS waste.
ANSI Compliant | Yes |
Bowl Dia. | 11" |
Depth | 14-1/8" |
Eyewash Bowl Material | Plastic |
Fitting Size | 1/2" NPT Female" |
Head Dia. | 2-1/4" |
Height | 10-3/8" |
Item | Wall-Mount Eyewash |
Mounting | Wall Mount |
Operation | Push Handle |
Sprayhead | Eye/Facewash |
Width | 14-1/2" |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
