Haws 8317CTFP Freeze Resistant 120V Eyewash Station & Drench Shower
Availability : Usually Ships in 3-5 Business Days
✅ Freeze-protected to -30°F with heat-traced insulation.
✅ AXION® MSR design for medically accurate water flow.
✅ ANSI Z358.1 compliant with 20 GPM shower and 3.7 GPM eye/face wash
120 VAC Cable Heated, Freeze-Resistant, Combination Drench Shower And Feather-Flo Eye/Face Wash Station, Top Or Bottom Supply, Meets ANSI Z358.1-2014 Requirements

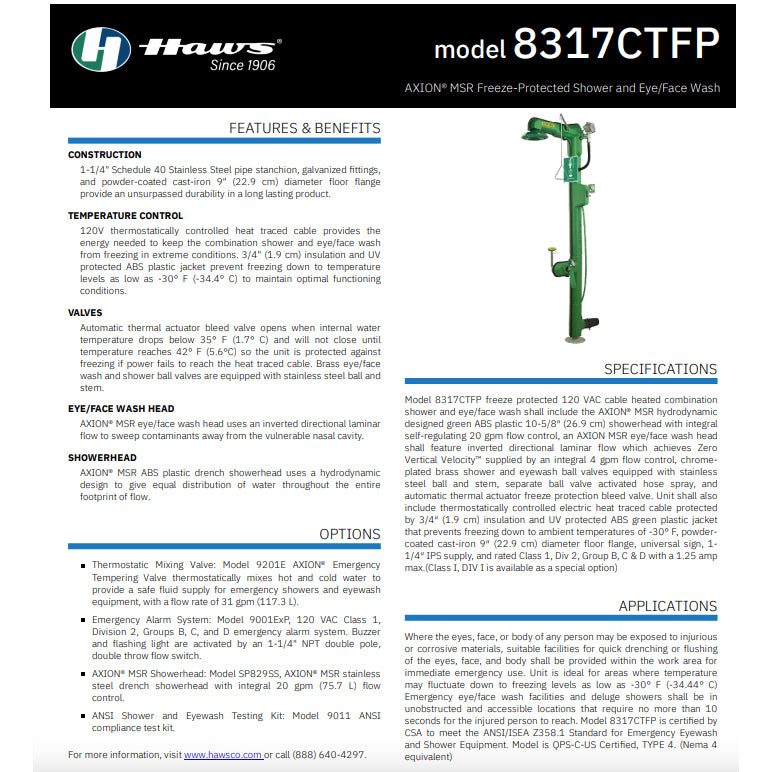

Model 8317CTFP freeze-resistant 120 VAC cable heated combination shower and eye/face wash shall include a green ABS plastic 10-5/8" showerhead with integral self-regulating 20 gpm flow control, green Feather-Flo ABS plastic eye/face wash heads with integral flow controls and dust covers, chrome-plated brass shower and eyewash ball valves equipped with stainless steel ball and stem, separate ball valve activated hose spray, and automatic thermal actuator freeze protection bleed valve. Unit shall also include thermostatically controlled electric heat traced cable protected by 3/4" insulation and an ABS plastic green jacket that prevents freezing down to ambient temperatures of -30°F, powder-coated cast-iron 9" diameter floor flange, universal sign, 1-1/4" IPS supply, and rated Class 1, Division 2, Group B, C and D. (Class I, DIV I is available as a special option)
CONSTRUCTION
1-1/4" Schedule 40 Stainless Steel pipe stanchion, galvanized ttings, and powder-coated cast-iron 9" (22.9 cm) diameter floor flange provide an unsurpassed durability in a long lasting product.
TEMPERATURE CONTROL
120V thermostatically controlled heat traced cable provides the energy needed to keep the combination shower and eye/face wash from freezing in extreme conditions. 3/4" (1.9 cm) insulation and UV protected ABS plastic jacket prevent freezing down to temperature levels as low as -30° F (-34.4° C) to maintain optimal functioning conditions.
VALVES
Automatic thermal actuator bleed valve opens when internal water temperature drops below 35° F (1.7° C) and will not close until temperature reaches 42° F (5.6°C) so the unit is protected against freezing if power fails to reach the heat traced cable. Brass eye/face wash and shower ball valves are equipped with stainless steel ball and stem.
EYE/FACE WASH HEAD
AXION® MSR eye/face wash head uses an inverted directional laminar flow to sweep contaminants away from the vulnerable nasal cavity.
SHOWERHEAD
AXION® MSR ABS plastic drench showerhead uses a hydrodynamic design to give equal distribution of water throughout the entire footprint of flow.
| Item | Freeze Resistant Eyewash with Shower |
| Sprayhead | Eye/Facewash |
| Mounting | Floor Mount |
| Eyewash Bowl Material | No Bowl |
| Operation | Push Handle |
| Shower Operation | Pull Down Arm |
| Shower Head Material | Plastic |
| Width | 21" |
| Height | 96" |
| Head Dia. | 11" |
| Bowl Dia. | 11" |
| Shower Spray Head Diameter | 10 5/8 in |
| Inlet Pipe Size | 1 1/4 in |
| Shower Handle Length | 28 1/4 in |
| Depth | 43 1/4 in |
| Mount Hole Diameter | 3/8 in |
| Outlet Pipe Size | 1 1/4 in |
| Color | Green |
| Mount Type | Floor |
| Environment | Freezing Temperatures, Hazardous Location |
| Shower Activation | Pull Rod |
| Pipe Material | Stainless Steel |
| Standards | ANSI Z358.1, CSA Certified |
| Inlet (Location) | 1 1/4 in NPT Female (Bottom/Top) with Freeze Protection Valve |
| Eyewash Activation | Pull Rod |
| Electrical Ratings | 120V AC |
| ANSI Compliant | Yes |
| Valve Material | Chrome Plated Brass |
| Fitting Material | Galvanized Steel |
| Temp. Control | Heat Cable Traced Self Regulating |
| Eye Wash Covering | Yes |
| Heat Traced | Yes |
| Voltage | 120 V AC |
| Coverage | Eyes and Face |
| Includes Drench Hose | Yes |
| Inlet Pipe Gender | Female |
| Includes Foot Pedal | No |
| Barrier Free | No |
| Outlet Pipe Thread Type | IPS |
| Inlet Pipe Thread Type | NPT |
| Minimum Operating Temperature | -30 Degrees F |
| Eyewash Handle Material | Stainless Steel |
| Inlet Connection Location | Bottom/Top |
| Installation Type | Plumbed |
| Assembly | Assembled |
| Series | AXION MSR |
| Valve Features | Freeze Protection |
| Hazardous Location Rating | Class I/Division 2 |
| Eyewash Spray Head Style | Covered |
| Bowl Style | No Bowl |
| ANSI Compliance | Primary |
| Electrical Connection Type | Hardwired |
| NEMA Rating | 4 |
