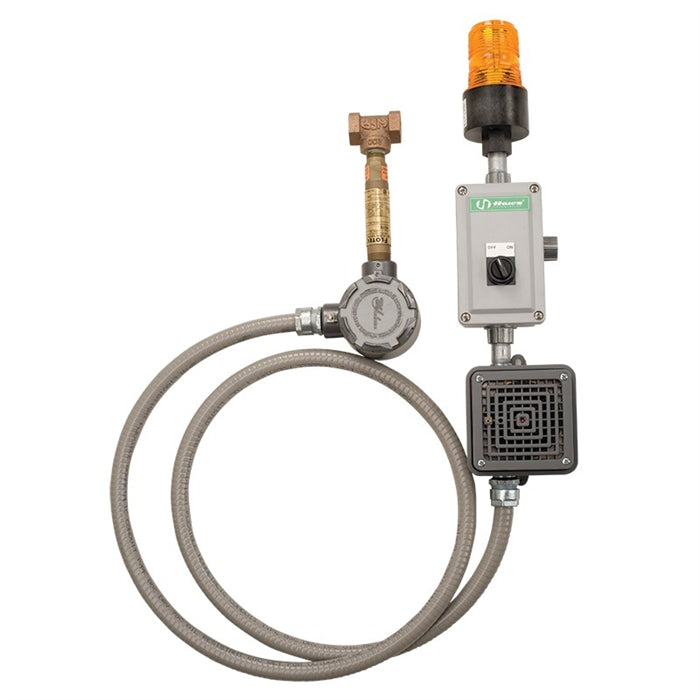

Haws 9001.5 Emergency Alarm And Light System for Eyewash Stations
Availability : Usually Ships in 5-7 Business Days
120 VAC Eyewash Emergency Alarm And Light System. Buzzer And Flashing Light Are Activated By A 1/2" Double Pole, Double Throw Flow Switch
Model 9001 emergency alarm and light system will be operated by a double pole, double throw flow switch, which contains multiple sets of contacts for remote activation, and activates an amber flashing light and buzzer at 90 db, audible at 10 feet (buzzer can be silenced during testing). System can be mounted to pipe or wall. Voltage: 120 VAC, 50 or 60 cycles. Supply: 1/2" IPS. Model 9001 is CSA electrical certified, TYPE 4.
SPECIFICATIONS
Model 9001.5 emergency alarm and light system shall include an amber flashing light, and 90 db buzzer at 10 feet (304.8 cm) that is operated by a 1/2" NPT double pole, double throw flow switch which contains multiple sets of contacts for remote activation, and pipe bracket. Switch will activate at 1.5 gpm (3.8 L). Voltage: 120 VAC, 50 or 60 cycles. Supply: 1/2" IPS. Model 9001.5 is CSA electrical certified, TYPE 4. (Equivalent to Nema 4)
APPLICATIONS
Specifically, this alarm can be used with almost any Haws eye or eye/face wash model. The complete alarm is CSA electrical certified, TYPE 4. (Nema 4 equivalent)
AUDIBLE/VISUAL
Notification of an emergency is clearly noticeable with a brightly flashing amber light and easily recognizable with a 90 db buzzer. Buzzer can be silenced during testing by use of the siliencing switch.
FLOW SWITCH
The alarm is activated by a 1/2" IPS brass double pole, double throw flow switch that is supplied with an extra set of electrical contacts for remote alarm hook-up.
FLEXIBILITY
The alarm is easily placed in a number of mounting configurations with the supplied pipe clamp
Model 9001 emergency alarm and light system will be operated by a double pole, double throw flow switch, which contains multiple sets of contacts for remote activation, and activates an amber flashing light and buzzer at 90 db, audible at 10 feet (buzzer can be silenced during testing). System can be mounted to pipe or wall. Voltage: 120 VAC, 50 or 60 cycles. Supply: 1/2" IPS. Model 9001 is CSA electrical certified, TYPE 4.
SPECIFICATIONS
Model 9001.5 emergency alarm and light system shall include an amber flashing light, and 90 db buzzer at 10 feet (304.8 cm) that is operated by a 1/2" NPT double pole, double throw flow switch which contains multiple sets of contacts for remote activation, and pipe bracket. Switch will activate at 1.5 gpm (3.8 L). Voltage: 120 VAC, 50 or 60 cycles. Supply: 1/2" IPS. Model 9001.5 is CSA electrical certified, TYPE 4. (Equivalent to Nema 4)
APPLICATIONS
Specifically, this alarm can be used with almost any Haws eye or eye/face wash model. The complete alarm is CSA electrical certified, TYPE 4. (Nema 4 equivalent)
AUDIBLE/VISUAL
Notification of an emergency is clearly noticeable with a brightly flashing amber light and easily recognizable with a 90 db buzzer. Buzzer can be silenced during testing by use of the siliencing switch.
FLOW SWITCH
The alarm is activated by a 1/2" IPS brass double pole, double throw flow switch that is supplied with an extra set of electrical contacts for remote alarm hook-up.
FLEXIBILITY
The alarm is easily placed in a number of mounting configurations with the supplied pipe clamp
| Item | Alarm Systems |
