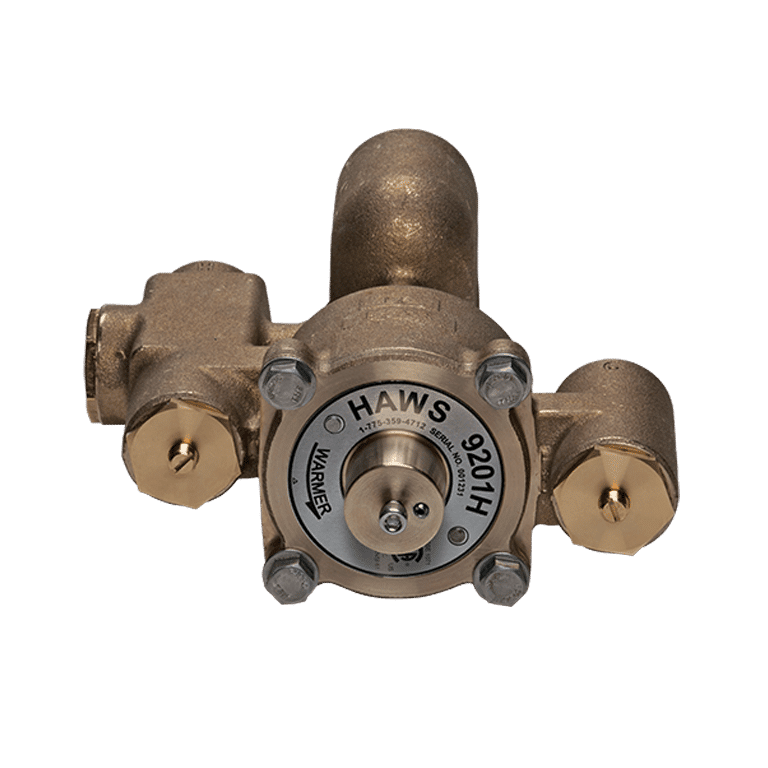

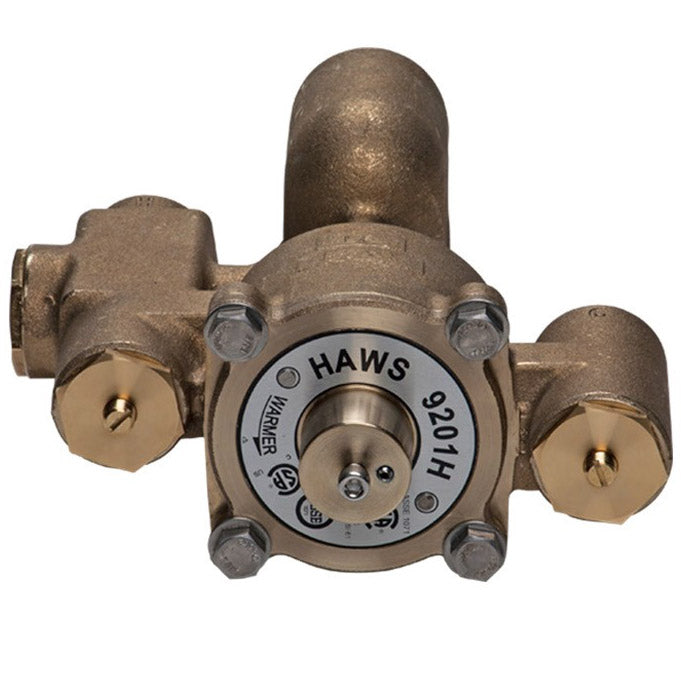

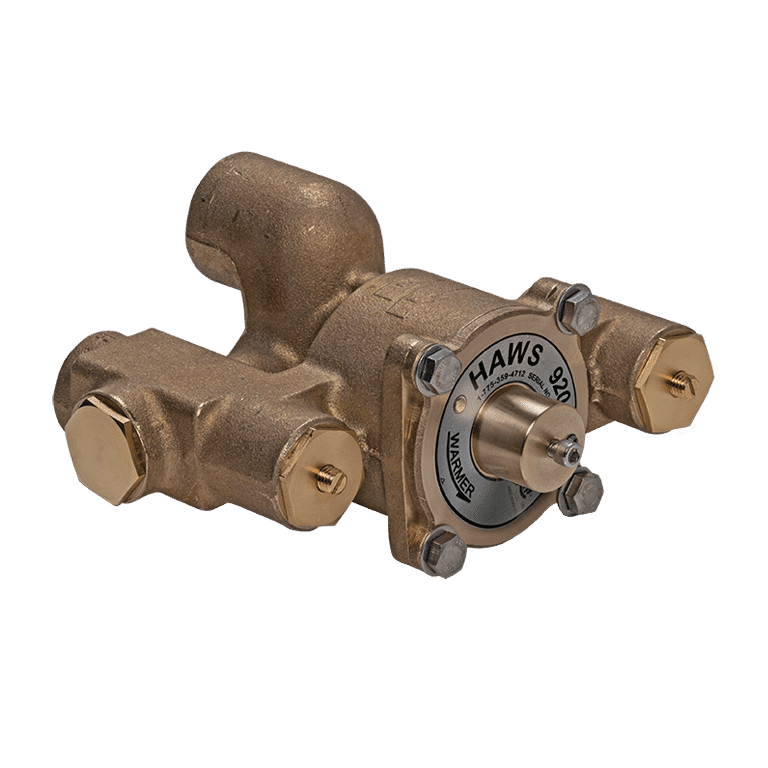

Haws 9201H Thermostatic Mixing Valve

• A flow rate of 1 to 31 gpm (3.8 to 117.3 L) for better temperature control across the operating range
• AXION's superior design and technology provide a complete safety solution for increased victim comfort.
• Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
• Wax based thermostat technology for fast response time with proven highly reliable temperature control
• Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
• Low-lead brass valve design with internal check stops
• Oversized valve seats resist failures caused by foreign matter
• A new and efficient shuttle design eliminates valve sticking
• A custom funnel design improves temperature control at low flow rates
• Outlet temperature is factory set to 85° F (29° C)
• Tempered water: High temperature limit is factory set to 87° F (30° C)
• Cold water by-pass valves are closed during normal operation, regardless of flow rate

Model 9201H, lead free Emergency Valve (patent pending), thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment. The valve contains a secondary high temperature limit valve to provide additional protection to the user in the event of main tempering valve malfunction. Additionally, to ensure a fail-safe water supply for emergency shower and eyewash stations, a series of cold water by-pass valves open in the event of hot water pressure loss. A flow rate of 1 to 28 GPM for better temperature control across the operating range. Lowest internal pressure drop for this class of valve (advantage where supply pressure is low). Wax based thermostat technology for fast response time with proven highly reliable temperature control. Highest Cold Water Bypass flow rate in the industry (64% of rated tempid flow rate). Broadest inlet pressure operating range in the industry (minimul outlet variation when cold water is reduced). Modular low-lead brass design with internal check stops. Oversized valve seats resist failures caused by foreign matter. A new and efficient shuttle design eliminates valve sticking. A custom funnel design improves temperature control at low flow rates. Outlet temperature is factory set to 85F (29C). Tempered water: High temperature limit is factory set to 90F (32C). 0.0 GPM cold water failure rate when tested according to ASSE 1071. Cold water by-pass valves are closed during normal operation, regardless of flow rate. CSA Certified to ASSE 1071, NSF 61, California Health and Safety Code 116875 (AB 1953-2006) and applicable sections of CSA B125.3.
