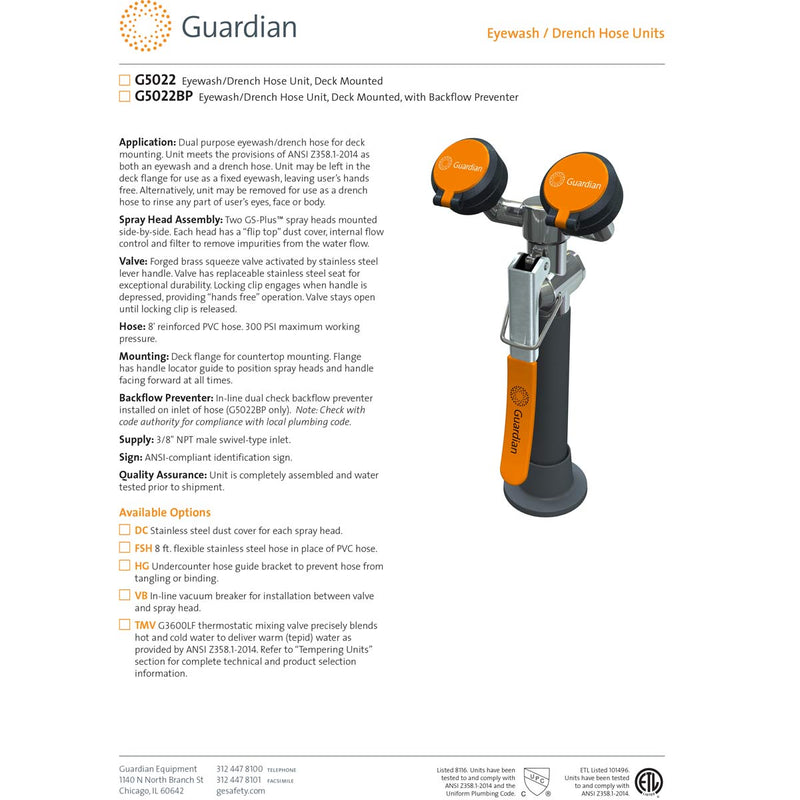

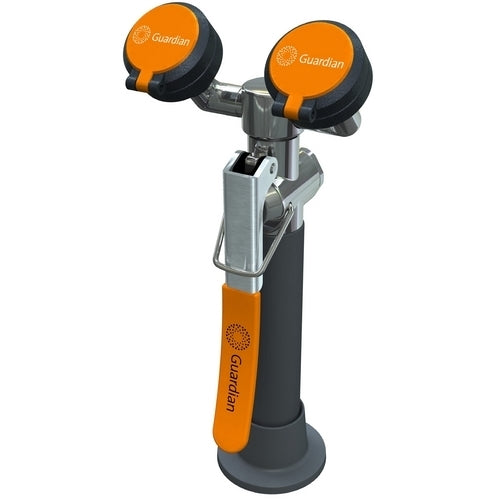

Guardian G5022BP Eyewash/Drench Hose Unit, Deck Mounted, with Backflow Preventer
Application: Dual purpose eyewash/drench hose for deck mounting. Unit meets the provisions of ANSI Z358.1-2014 as both an eyewash and a drench hose. Unit may be left in the deck flange for use as a fixed eyewash, leaving user’s hands free. Alternatively, unit may be removed for use as a drench hose to rinse any part of user’s eyes, face or body.
Spray Head Assembly: Two GS-Plus™ spray heads mounted side-by-side. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Locking clip engages when handle is depressed, providing “hands free” operation. Valve stays open until locking clip is released.
Hose: 8' reinforced PVC hose. 300 PSI maximum working pressure.

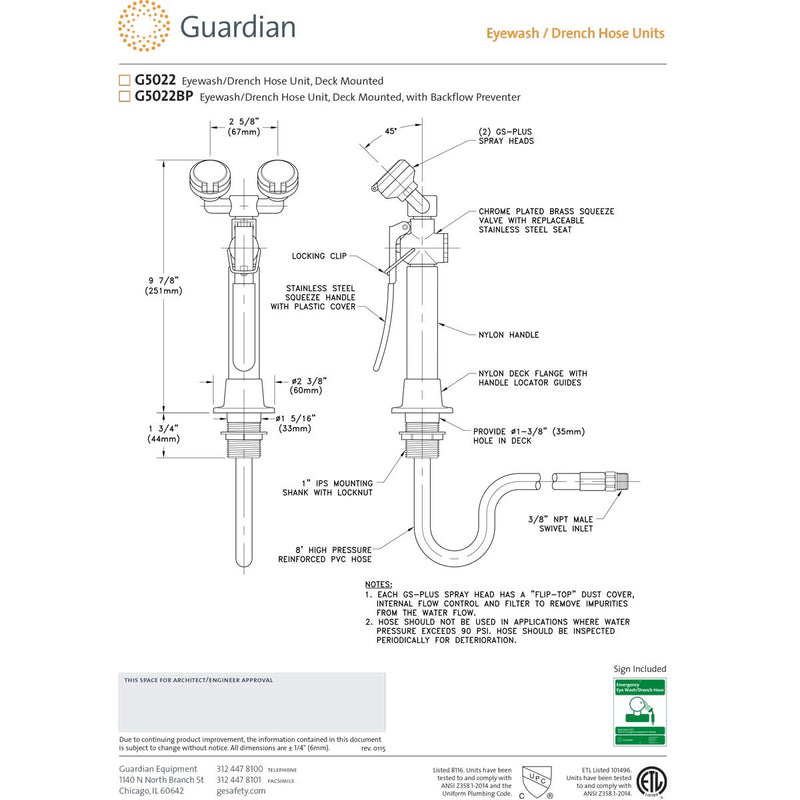

Mounting: Deck flange for countertop mounting. Flange has handle locator guide to position spray heads and handle facing forward at all times.
Backflow Preventer: In-line dual check backflow preventer installed on inlet of hose (G5022BP only). Note: Check with code authority for compliance with local plumbing code.
Supply: 3/8" NPT male swivel-type inlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
Application: Dual purpose eyewash/drench hose for deck mounting. Unit meets the provisions of ANSI Z358.1-2014 as both an eyewash and a drench hose. Unit may be left in the deck flange for use as a fixed eyewash, leaving user’s hands free. Alternatively, unit may be removed for use as a drench hose to rinse any part of user’s eyes, face or body.
Spray Head Assembly: Two GS-Plus™ spray heads mounted side-by-side. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Locking clip engages when handle is depressed, providing “hands free” operation. Valve stays open until locking clip is released.
Hose: 8' reinforced PVC hose. 300 PSI maximum working pressure.
Mounting: Deck flange for countertop mounting. Flange has handle locator guide to position spray heads and handle facing forward at all times.
Backflow Preventer: In-line dual check backflow preventer installed on inlet of hose (G5022BP only). Note: Check with code authority for compliance with local plumbing code.
Supply: 3/8" NPT male swivel-type inlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
| Item | Drench Hoses |
| Installation Type | Plumbed |
| Environment | General Purpose |
| Mount Type | Counter |
| Coverage | Eyes |
| Activation | Squeeze Handle |
| Spray Head Material | Plastic |
| Color | Gray |
| Number of Spray Heads | 2 |
| Inlet Pipe Size | 3/8 in |
| Inlet Pipe Thread Type | NPT |
| Inlet Pipe Gender | Male |
| Hose Length | 8 ft |
| Includes | Identification Sign; Inspection Tag; Mounting Hardware |
| Valve Material | Forged Brass |
| Maximum Flow Rate | 3.2 gpm |
| Standards | ANSI Z358.1-2014 |
| Hose Material | PVC |
| Mounting Style | Standard |
| Burst Strength | 275 psi |
| Drench Hose Valve Type | Stay-Open |
| Sprayhead Style | Angled |
