Corrosion-Resistant, All Stainless Steel Combination Drench Shower And Soft-Flo Eyewash Station With Face Spray Ring, Meets ANSI Z358.1-2014 Requirements. For the Optional Dust Cover Please See Haws 9102

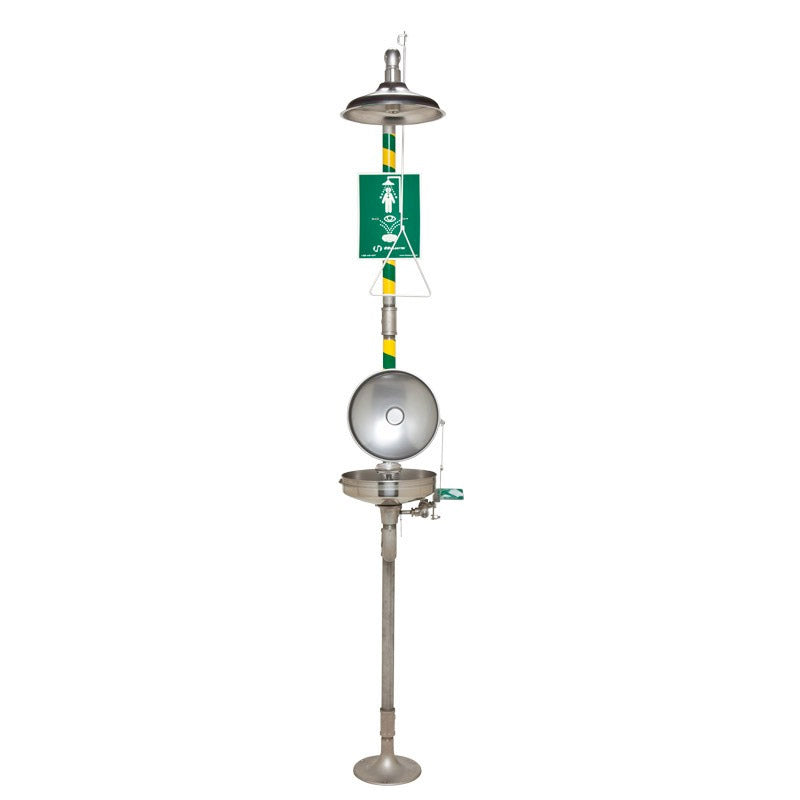

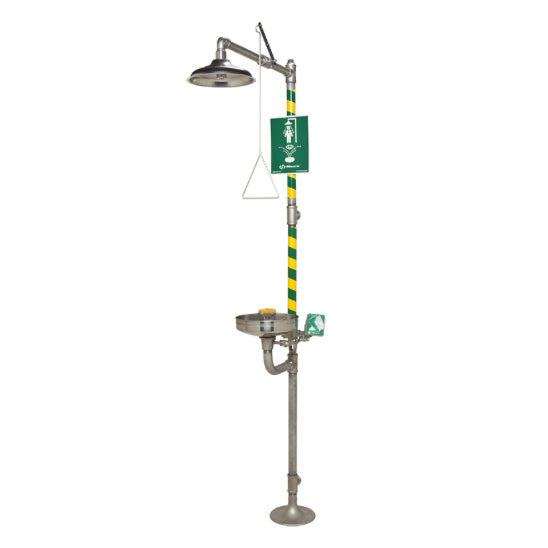

Model 8330 all stainless steel combination shower and eye/face wash shall include a stainless steel 10-1/2" shower head with integral self-regulating 20 gpm flow control, stainless steel 11" round bowl, stainless steel Soft-Flo anti-surge eyewash heads and face ring, optional stainless steel dust cover, stainless steel 50 x 50 mesh water strainer, and stainless steel stay-open shower and eyewash ball valves equipped with stainless steel ball and stem. Unit shall also include a stainless steel cast 9" diameter floor flange, Type 304 Stainless Steel pipe and fittings, universal sign, self-adhesive high visibility Safety Green and bright yellow stripes, and 1-1/4" IPS supply.
Model 8330 all stainless steel combination shower and eye/face wash shall include a stainless steel 10-1/2" shower head with integral self-regulating 20 gpm flow control, stainless steel 11" round bowl, stainless steel Soft-Flo anti-surge eyewash heads and face ring, optional stainless steel dust cover, stainless steel 50 x 50 mesh water strainer, and stainless steel stay-open shower and eyewash ball valves equipped with stainless steel ball and stem. Unit shall also include a stainless steel cast 9" diameter floor flange, Type 304 Stainless Steel pipe and fittings, universal sign, self-adhesive high visibility Safety Green and bright yellow stripes, and 1-1/4" IPS supply.
| Item | Combination Safety Shower Eyewash Stations |
| Sprayhead | Eye/Facewash |
| Shower Mounting | Floor Mount |
| Eyewash Bowl Material | Stainless Steel |
| Operation | Push Handle |
| Shower Operation | Pull Down Arm |
| Shower Head Material | Stainless Steel |
| Pipe Material | Stainless Steel |
| Eye Wash Bowl Material | Stainless Steel |
| Showerhead Material | Stainless Steel |
| Color | Green/Yellow |
| Head Dia. | 10 1/2 in |
| Bowl Dia. | 11 in |
| Eye Wash Activates By | Manual Hand Operation |
| Eye Wash Handle Material | Stainless Steel |
| Shower Head Activates By | Manual Hand Operated |
| Shower Handle Material | Stainless Steel |
| Eye Wash and Shower Mounting | Floor |
| Standards | ANSI Z358.1-2014 |
| ADA Compliance | No |
| Assembled/Unassembled | Unassembled |
| Eye Wash Covering | Yes |
| ANSI Compliant | Yes |
| Heat Traced | No |
